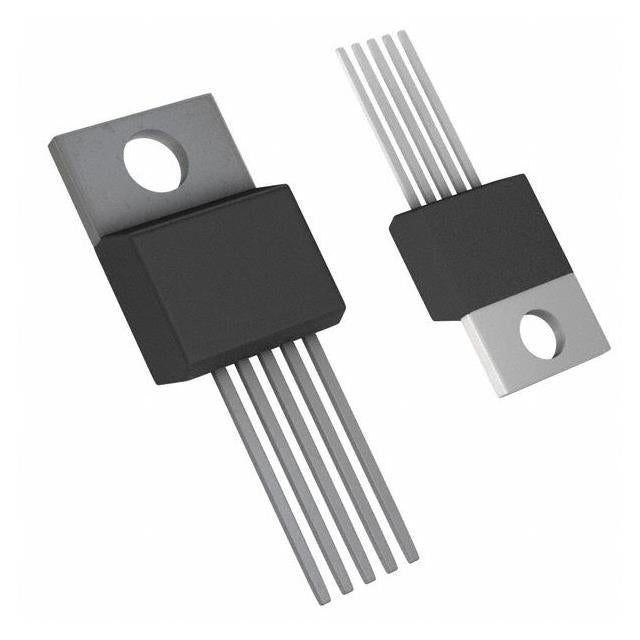

Microchip Technology MCP1825-ADJE/AT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.43 | $1.43 |
| 15+ | $1.39 | $20.85 |
| 25+ | $1.36 | $34.00 |
| 50+ | $1.28 | $64.00 |
| 100+ | $1.13 | $113.00 |
| N+ | $0.23 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Tube | |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 5V |
| Voltage Dropout (Max) | 0.35V @ 500mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 220 µA |
| Current - Supply (Max) | - |
| PSRR | 60dB (100Hz) |
| Control Features | Enable, Power Good |
| Protection Features | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-5 |
| Supplier Device Package | TO-220-5 |
| ROHS |  |
The MCP1825-ADJE/AT from Microchip Technology is an adjustable LDO regulator delivering up to 500mA. With a reference voltage of 0.8V, output can be set via external resistors. The TO-220-5 package provides excellent thermal performance for high-power applications.
- Adjustable Output: Set any voltage from 0.8V to 5.5V with two resistors.
- High Current: 500mA capacity for demanding loads.
- Excellent Thermal: TO-220 package with tab for heatsink mounting.
- Low Dropout: 0.35V dropout maximizes efficiency.
Adjustable Power Supplies
Flexible output voltage (from 0.8V up) makes it ideal for bench power supplies and custom voltage rails.
FPGA/ASIC Core Supplies
Adjustable output allows precise voltage setting for different logic families, with 500mA for moderate loads.
Audio Equipment
Low noise and adjustable output enable clean power for analog audio circuits, reducing hum and distortion.
Battery Chargers
Adjustable output can be set to match battery chemistry requirements in charging circuits.
Laboratory Instruments
TO-220 package with tab allows easy heatsinking for continuous operation in test equipment.
Prototyping Boards
Versatile adjustable output simplifies breadboard and development board power design.
- Q: What is the output voltage?
- A: The MCP1825-ADJE/AT is adjustable, with output set by external resistors (reference 0.8V).
- Q: What is the maximum output current?
- A: It can deliver up to 500mA.
- Q: What is the input voltage range?
- A: Input voltage range is from 0.8V to 6.0V.
- Q: What is the dropout voltage?
- A: Dropout is typically 0.35V at 500mA.
- Q: What is the quiescent current?
- A: Quiescent current is 220 µA.
- Q: What package is available?
- A: It comes in a TO-220-5 package.
