Microchip Technology MCP1825S-1202E/AB
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.44 | $3.44 |
| 15+ | $0.79 | $11.85 |
| 25+ | $0.77 | $19.25 |
| 50+ | $0.73 | $36.50 |
| 100+ | $0.65 | $65.00 |
| N+ | $0.13 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Tube | |
| Output Configuration | Active |
| Output Type | Positive |
| Number of Regulators | Fixed |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 1.2V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.35V @ 500mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 220 μA |
| Current - Supply (Max) | - |
| PSRR | 60dB (100Hz) |
| Control Features | - |
| Protection Features | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220-3 |
| ROHS |  |

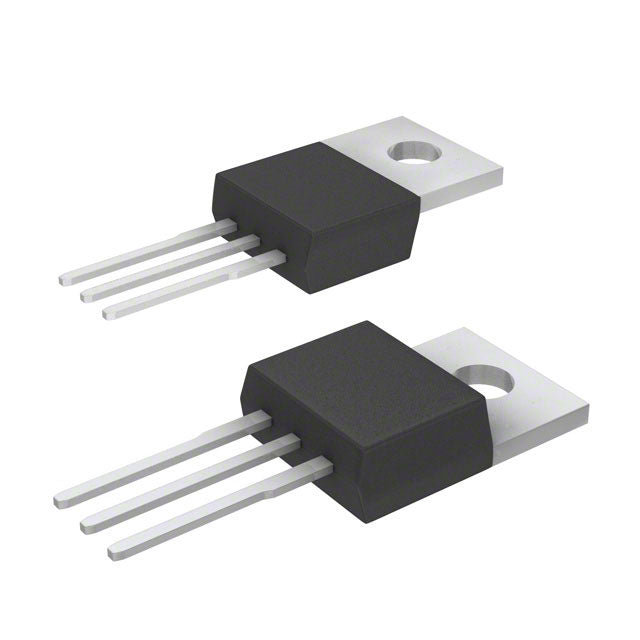

The MCP1825S-1202E/AB is a fixed 1.2V LDO regulator from Microchip Technology, capable of delivering 500mA. Housed in a TO-220-3 package, it offers excellent thermal dissipation for continuous operation. With a dropout of 0.35V and quiescent current of 220 μA, it balances efficiency and performance for industrial and automotive applications.
- High Current Capacity: 500mA supports multiple digital loads from a single regulator.
- Low Dropout: 0.35V at full load maximizes headroom for low input voltages.
- Thermally Efficient: TO-220-3 package allows heatsink attachment for high-power dissipation.
- Stable Regulation: 60dB PSRR at 100Hz rejects power-line ripple.
Microcontroller Power Rails
Provides a stable 1.2V core supply for MCUs and DSPs, with 500mA capacity and 60dB PSRR at 100Hz to filter mains noise.
FPGA Auxiliary Logic
Powers low-voltage FPGA I/O banks and configuration logic, ensuring reliable operation with low dropout.
Industrial Sensor Interfaces
Regulates 1.2V for precision ADCs and sensor bridges, maintaining accuracy with low output noise.
Networking Equipment
Supplies 1.2V to Ethernet PHYs and switch ICs, with the TO-220 package handling moderate thermal loads.
Automotive ECUs
Provides a clean 1.2V rail for engine control unit microprocessors, with robust package for harsh environments.
LED Driver Controllers
Powers low-voltage control logic in LED drivers, ensuring consistent dimming performance.
- Q: What is the output voltage?
- A: The MCP1825S-1202E/AB outputs a fixed 1.2V.
- Q: What is the maximum output current?
- A: It can deliver up to 500mA of current.
- Q: What is the input voltage range?
- A: Input voltage is not specified; must be above 1.2V plus dropout (0.35V typical).
- Q: What is the dropout voltage?
- A: Dropout is 0.35V at 500mA load.
- Q: What is the quiescent current?
- A: Quiescent current is 220 μA.
- Q: What package is available?
- A: It comes in a TO-220-3 package, suitable for through-hole mounting with thermal performance.
