Microchip Technology MCP1825S-3302E/AB
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.06 | $1.06 |
| 15+ | $1.03 | $15.45 |
| 25+ | $1.01 | $25.25 |
| 50+ | $0.95 | $47.50 |
| 100+ | $0.84 | $84.00 |
| N+ | $0.17 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Tube | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.35V @ 500mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 220 µA |
| Current - Supply (Max) | - |
| PSRR | 60dB (100Hz) |
| Control Features | - |
| Protection Features | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220-3 |
| ROHS |  |

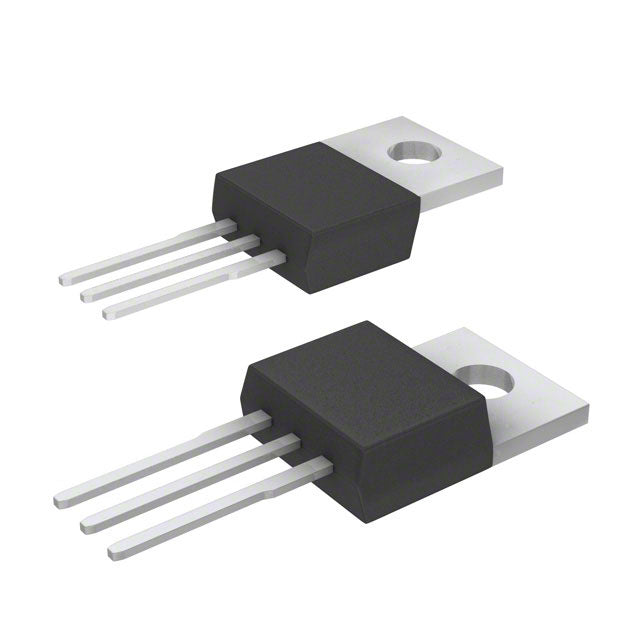

The MCP1825S-3302E/AB from Microchip Technology is a fixed 3.3V low-dropout regulator delivering 500mA. Its 0.35V dropout at full load and 220 µA quiescent current make it efficient for battery and industrial applications. The TO-220-3 package provides robust thermal handling.
- Ultra-Low Dropout: 0.35V at 500mA maximizes efficiency with low input margins.
- High Ripple Rejection: 60dB at 100Hz filters low-frequency noise.
- Robust Package: TO-220-3 ensures excellent heat dissipation.
- Versatile Use: Suitable for automotive, industrial, and consumer applications.
FPGA Core Power
Low dropout of 0.35V at 500mA supports FPGA core voltages from 3.6V rails, ensuring stable operation.
Automotive Sensor Modules
60dB PSRR at 100Hz filters alternator noise, providing clean 3.3V for pressure and temperature sensors.
Industrial Process Control
Delivers 500mA to PLC analog outputs, with TO-220 package for reliable thermal performance.
Consumer Electronics
Powers set-top boxes and gaming peripherals, with low dropout for efficient operation from 5V USB sources.
Renewable Energy Systems
Regulates 3.3V for MPPT controllers, with high ripple rejection for solar inverter environments.
- Q: What is the output voltage of the MCP1825S-3302E/AB?
- A: It provides a fixed 3.3V output.
- Q: What is the maximum output current?
- A: It can deliver up to 500mA of output current.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; refer to the datasheet for full specifications.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.35V at 500mA load.
- Q: What is the quiescent current?
- A: The quiescent current is 220 µA.
- Q: What package is available?
- A: It comes in a TO-220-3 package.
