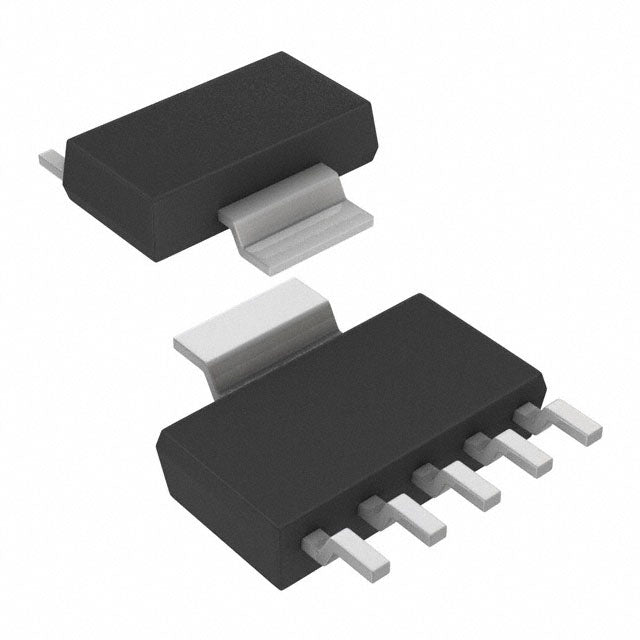

Microchip Technology MCP1825T-0802E/DC
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.40 | $1.40 |
| 15+ | $0.32 | $4.80 |
| 25+ | $0.32 | $8.00 |
| 50+ | $0.30 | $15.00 |
| 100+ | $0.26 | $26.00 |
| N+ | $0.05 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.35V @ 500mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 220 µA |
| Current - Supply (Max) | - |
| PSRR | 60dB (100Hz) |
| Control Features | Enable, Power Good |
| Protection Features | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-223-6 |
| Supplier Device Package | SOT-223-5 |
| ROHS |  |
The Microchip MCP1825T-0802E/DC is a low-dropout linear regulator offering a fixed 0.8V output at up to 500mA. With a low dropout of 0.35V at full load and 60dB PSRR at 100Hz, it provides clean, stable power for digital cores. The SOT-223-5 package ensures good thermal performance. Ideal for space-constrained, high-current applications.
- High Current Capacity: 500mA output for demanding digital loads.
- Low Dropout: 0.35V at 500mA maximizes efficiency.
- Good Ripple Rejection: 60dB PSRR at 100Hz for stable operation.
- Thermal Efficiency: SOT-223-5 package dissipates heat effectively.
FPGA Core Voltage Supply
Provides a stable 0.8V rail for low-voltage FPGA cores, with 500mA capacity for moderate logic designs.
DSP and Processor Cores
Low dropout of 0.35V at 500mA ensures efficient power delivery from 1.2V input rails.
High-Density Digital ASICs
Delivers clean 0.8V power with 60dB PSRR at 100Hz, reducing noise-induced errors in high-speed circuits.
Server Motherboard VRMs
Secondary regulation for memory or I/O interfaces requiring precise 0.8V reference.
Telecom Line Cards
SOT-223-5 package with thermal pad handles 500mA continuous load in rack-mounted equipment.
Industrial Control Systems
Reliable 0.8V supply for PLC I/O modules, with 220 µA quiescent current for always-on operation.
- Q: What is the output voltage of the MCP1825T-0802E/DC?
- A: The fixed output voltage is 0.8V.
- Q: What is the maximum output current?
- A: It can deliver up to 500mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; refer to the datasheet.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.35V at 500mA load.
- Q: What is the quiescent current?
- A: The quiescent current is 220 µA.
- Q: What package is available?
- A: It comes in a SOT-223-5 package.
