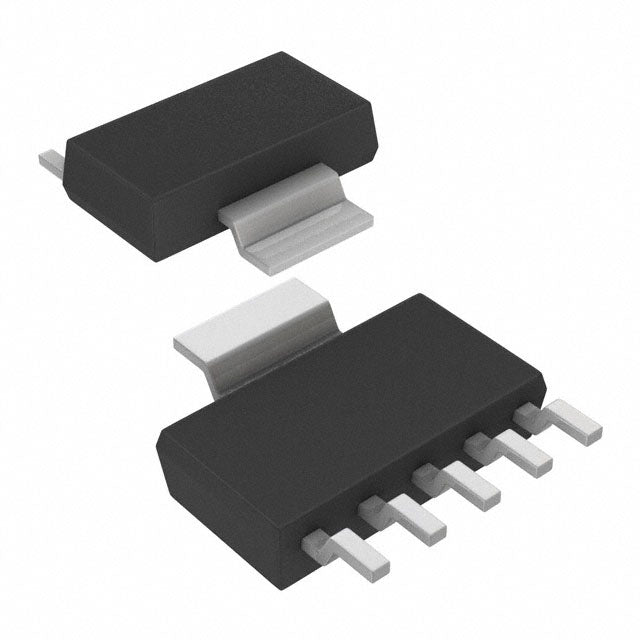

Microchip Technology MCP1825T-1202E/DC
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.40 | $1.40 |
| 15+ | $0.32 | $4.80 |
| 25+ | $0.32 | $8.00 |
| 50+ | $0.30 | $15.00 |
| 100+ | $0.26 | $26.00 |
| N+ | $0.05 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 1.2V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.35V @ 500mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 220 µA |
| Current - Supply (Max) | - |
| PSRR | 60dB (100Hz) |
| Control Features | Enable, Power Good |
| Protection Features | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-223-6 |
| Supplier Device Package | SOT-223-5 |
| ROHS |  |
The Microchip MCP1825T-1202E/DC is a low-dropout linear regulator delivering a fixed 1.2V output at up to 500mA. Featuring a low dropout of 0.35V at full load and 60dB PSRR at 100Hz, it ensures clean and stable power for digital circuits. The SOT-223-5 package provides excellent thermal performance for continuous operation.
- Robust Current Delivery: 500mA output for multi-IC loads.
- Low Dropout: 0.35V at 500mA improves efficiency.
- Stable Output: 60dB PSRR at 100Hz filters supply noise.
- Compact Thermal Package: SOT-223-5 with exposed pad for heat dissipation.
DDR Memory Termination
Provides a stable 1.2V rail for DDR3/DDR4 VTT termination, with 500mA capacity for multiple memory modules.
FPGA Auxiliary Supply
Powers 1.2V auxiliary rails in FPGAs, ensuring clean operation with 60dB PSRR at 100Hz.
Networking Switches
Regulates 1.2V for PHY and switch ICs, maintaining signal integrity in high-speed data paths.
Automotive ECUs
Low dropout of 0.35V at 500mA supports operation from 5V automotive rails with thermal headroom.
Test and Measurement Equipment
Provides precise 1.2V reference for ADC/DAC circuits, reducing measurement errors.
Consumer Set-Top Boxes
Efficiently powers 1.2V cores in media processors, with SOT-223-5 package for easy PCB layout.
- Q: What is the output voltage of the MCP1825T-1202E/DC?
- A: The fixed output voltage is 1.2V.
- Q: What is the maximum output current?
- A: It can deliver up to 500mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; refer to the datasheet.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.35V at 500mA load.
- Q: What is the quiescent current?
- A: The quiescent current is 220 µA.
- Q: What package is available?
- A: It comes in a SOT-223-5 package.
