Microchip Technology MCP1825T-2502E/DC
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.40 | $1.40 |
| 15+ | $0.32 | $4.80 |
| 25+ | $0.32 | $8.00 |
| 50+ | $0.30 | $15.00 |
| 100+ | $0.26 | $26.00 |
| N+ | $0.05 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 2.5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.35V @ 500mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 220 µA |
| Current - Supply (Max) | - |
| PSRR | 60dB (100Hz) |
| Control Features | Enable, Power Good |
| Protection Features | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-223-6 |
| Supplier Device Package | SOT-223-5 |
| ROHS |  |

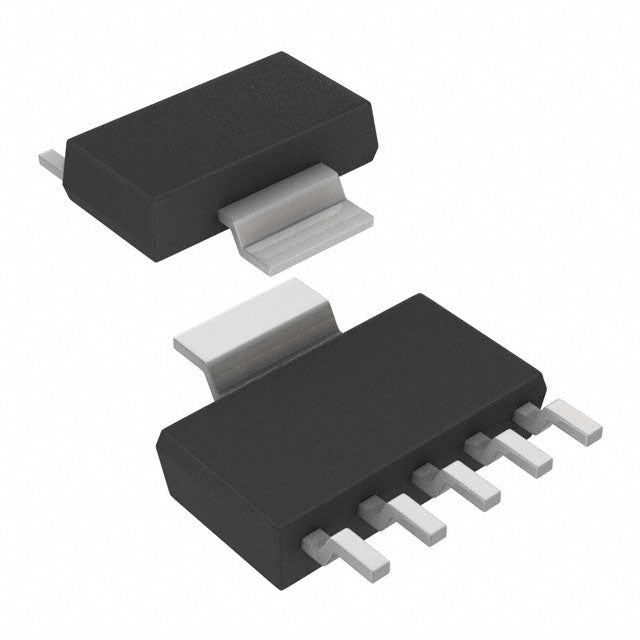

The Microchip MCP1825T-2502E/DC is a low-dropout linear regulator providing a fixed 2.5V output at up to 500mA. With a low dropout of 0.35V at full load and 60dB PSRR at 100Hz, it delivers clean, stable power for analog and digital circuits. The SOT-223-5 package ensures efficient heat dissipation in compact designs.
- High Output Current: 500mA for versatile applications.
- Low Dropout: 0.35V at 500mA maximizes usable voltage range.
- Excellent Noise Rejection: 60dB PSRR at 100Hz for sensitive analog loads.
- Reliable Thermal Performance: SOT-223-5 package with exposed pad.
Analog Sensor Power
Provides a clean 2.5V rail for precision op-amps and sensors, with 60dB PSRR at 100Hz reducing noise.
Mixed-Signal Microcontrollers
Powers 2.5V I/O and analog sections in MCUs, ensuring stable ADC reference voltage.
Portable Instrumentation
500mA capacity supports multiple measurement channels in handheld multimeters.
Industrial Process Control
Low dropout of 0.35V at 500mA allows operation from 3.3V rails in 4-20mA loop transmitters.
Audio Equipment
Provides quiet 2.5V bias supply for audio codecs, minimizing hum and interference.
LED Display Drivers
Regulates 2.5V for logic sections of LED drivers, ensuring consistent brightness control.
- Q: What is the output voltage of the MCP1825T-2502E/DC?
- A: The fixed output voltage is 2.5V.
- Q: What is the maximum output current?
- A: It can deliver up to 500mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; refer to the datasheet.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.35V at 500mA load.
- Q: What is the quiescent current?
- A: The quiescent current is 220 µA.
- Q: What package is available?
- A: It comes in a SOT-223-5 package.
