Microchip Technology MCP1825T-3002E/DC
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.66 | $0.66 |
| 15+ | $0.63 | $9.45 |
| 25+ | $0.62 | $15.50 |
| 50+ | $0.59 | $29.50 |
| 100+ | $0.52 | $52.00 |
| N+ | $0.10 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.35V @ 500mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 220 µA |
| Current - Supply (Max) | - |
| PSRR | 60dB (100Hz) |
| Control Features | Enable, Power Good |
| Protection Features | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-223-6 |
| Supplier Device Package | SOT-223-5 |
| ROHS |  |

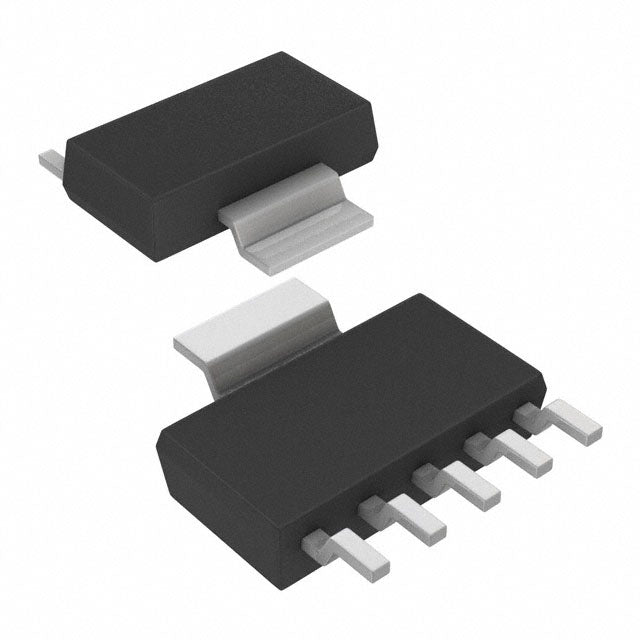

The MCP1825T-3002E/DC from Microchip Technology is a 500mA low dropout regulator with a fixed 3.0V output. Featuring a low dropout of 0.35V and 220µA quiescent current, it is designed for higher-current applications. The SOT-223-5 package provides excellent thermal performance for demanding environments.
- High Output Current: 500mA capability supports power-hungry peripherals and multi-rail systems.
- Low Dropout: 0.35V at full load improves efficiency and extends battery runtime.
- Thermally Efficient: SOT-223-5 package dissipates heat effectively for reliable operation.
- Versatile Applications: Suitable for industrial, automotive, and consumer electronics.
High-Current Portable Devices
500mA output capability supports GPS units, digital cameras, and handheld gaming consoles.
FPGA & CPLD Core Supplies
Stable 3.0V rail with 0.35V dropout ensures reliable operation for low-power FPGAs.
Automotive Infotainment
Robust SOT-223-5 package handles vibration and temperature extremes in car audio and navigation systems.
Industrial Sensors
500mA current capacity powers multiple sensors and transmitters from a single regulated rail.
Networking Equipment
Provides clean 3.0V for routers, switches, and modems, improving signal integrity.
Battery Charging Circuits
Can be used as a post-regulator for battery charging systems requiring a stable 3.0V output.
- Q: What is the output voltage of the MCP1825T-3002E/DC?
- A: The fixed output voltage is 3.0V.
- Q: What is the maximum output current?
- A: It can deliver up to 500mA.
- Q: What is the input voltage range?
- A: The input voltage range is 3.0V to 6.0V.
- Q: What is the dropout voltage?
- A: Dropout voltage is 0.35V at 500mA.
- Q: What is the quiescent current?
- A: Quiescent current is 220µA.
- Q: What package is available?
- A: It comes in a SOT-223-5 package.
