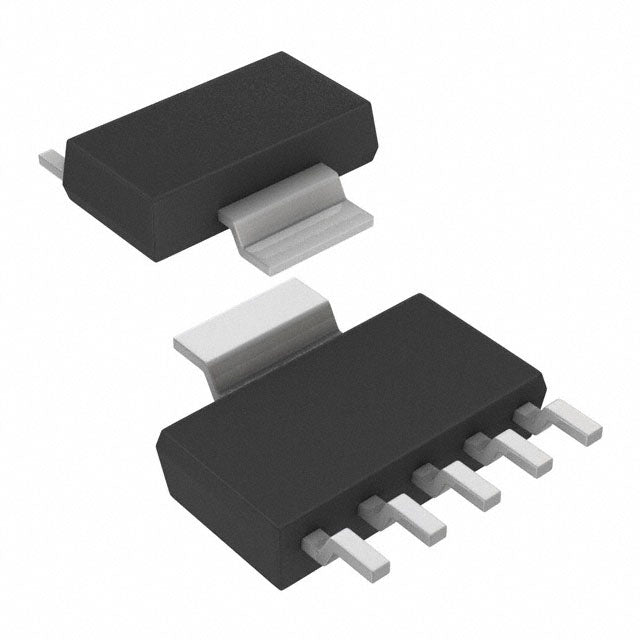

Microchip Technology MCP1825T-3302E/DC
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.66 | $0.66 |
| 15+ | $0.63 | $9.45 |
| 25+ | $0.62 | $15.50 |
| 50+ | $0.59 | $29.50 |
| 100+ | $0.52 | $52.00 |
| N+ | $0.10 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.35V @ 500mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 220 µA |
| Current - Supply (Max) | - |
| PSRR | 60dB (100Hz) |
| Control Features | Enable, Power Good |
| Protection Features | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-223-6 |
| Supplier Device Package | SOT-223-5 |
| ROHS |  |
The MCP1825T-3302E/DC is a fixed 3.3V LDO from Microchip Technology, rated for 500mA output. It features a low dropout of 0.35V at full load and 220µA quiescent current. The SOT-223-5 package provides enhanced thermal performance and pin spacing for high-reliability applications.
- Robust Current Delivery: 500mA supports demanding loads like FPGAs and RF modules.
- Excellent Noise Rejection: 60dB PSRR at 100Hz ensures clean power for analog circuits.
- Wide Temperature Range: -40°C to +125°C operation for industrial and automotive use.
- Enhanced Package: SOT-223-5 offers better thermal dissipation than smaller alternatives.
FPGA Core Supply
Delivers 500mA at 3.3V for FPGA I/O banks, with 60dB PSRR at 100Hz filtering switching noise from DC-DC converters.
Automotive ECU Modules
Powers sensors and microcontrollers in engine control units, with SOT-223-5 package handling high ambient temperatures.
Industrial Process Control
Provides stable 3.3V for analog-to-digital converters and op-amps in factory automation, ensuring measurement accuracy.
Telecom Base Stations
Regulates 5V rails to 3.3V for RF transceivers, with low dropout maintaining performance during load transients.
Medical Monitoring Equipment
Powers patient vital signs monitors, offering reliable operation and low noise for sensitive biosignal acquisition.
Consumer Set-Top Boxes
Supplies clean 3.3V to HDMI and Ethernet interfaces, with 500mA capacity for multiple peripherals.
- Q: What is the output voltage?
- A: Fixed 3.3V output.
- Q: What is the maximum current?
- A: 500mA.
- Q: What is the input voltage range?
- A: 3.3V to 6.0V.
- Q: What is the dropout voltage?
- A: 0.35V at 500mA.
- Q: What is the quiescent current?
- A: 220µA typical.
- Q: What package is it?
- A: SOT-223-5 package.
