Microchip Technology MCP1825T-ADJE/DC
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.66 | $0.66 |
| 15+ | $0.63 | $9.45 |
| 25+ | $0.62 | $15.50 |
| 50+ | $0.59 | $29.50 |
| 100+ | $0.52 | $52.00 |
| N+ | $0.10 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 5V |
| Voltage Dropout (Max) | 0.35V @ 500mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 220 µA |
| Current - Supply (Max) | - |
| PSRR | 60dB (100Hz) |
| Control Features | Enable, Power Good |
| Protection Features | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-223-6 |
| Supplier Device Package | SOT-223-5 |
| ROHS |  |

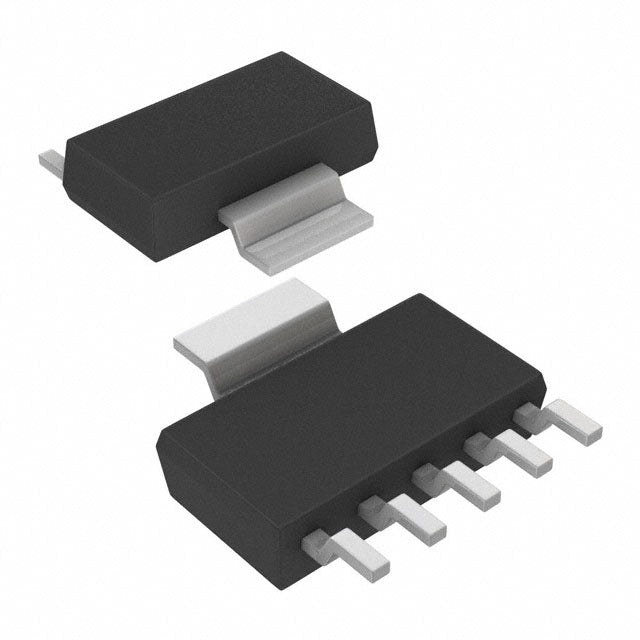

The MCP1825T-ADJE/DC from Microchip Technology is an adjustable output LDO capable of delivering 500mA. The output voltage can be set from 0.8V up to 5V using external resistors, with a reference voltage of 0.8V. It features a low dropout of 0.35V at full load and 220µA quiescent current, packaged in SOT-223-5.
- Adjustable Output: Flexible voltage setting from 0.8V to 5V for diverse applications.
- High Current: 500mA output supports power-hungry loads.
- Low Dropout: 0.35V at 500mA maximizes headroom in tight designs.
- Good PSRR: 60dB at 100Hz rejects ripple for clean output.
Variable Power Supplies
Adjustable output from 0.8V to 5V allows designers to create custom voltage rails for prototyping and bench equipment.
FPGA Core Voltage
Set output to 1.2V or 1.8V for FPGA cores, with 500mA capability and low dropout for tight regulation.
DDR Memory Termination
Provides adjustable termination voltage (VTT) for DDR3/DDR4 memory, with 500mA sink/source capability.
Sensor Conditioning
Adjustable output powers bridge sensors and strain gauges, allowing precise excitation voltage calibration.
Audio Amplifier Bias
Set output to 2.5V or 3.3V for op-amp rails, with 60dB PSRR reducing power supply hum.
Battery Charger Reference
Provides adjustable reference voltage for battery charging circuits, enabling precise charge voltage control.
- Q: What is the output voltage?
- A: Adjustable output, with reference voltage of 0.8V (set by external resistors).
- Q: What is the maximum current?
- A: 500mA.
- Q: What is the input voltage range?
- A: 2.1V to 6.0V (depending on output setting).
- Q: What is the dropout voltage?
- A: 0.35V at 500mA.
- Q: What is the quiescent current?
- A: 220µA typical.
- Q: What package is available?
- A: SOT-223-5 package.
