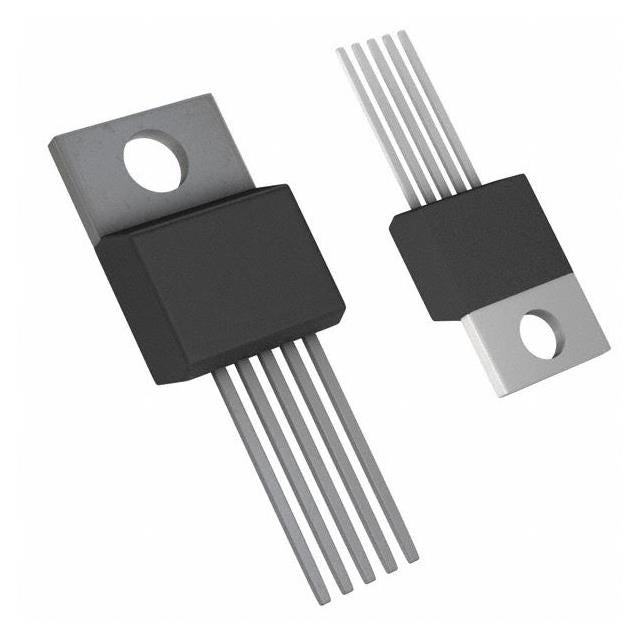

Microchip Technology MCP1826-0802E/AT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.32 | $1.32 |
| 15+ | $1.28 | $19.20 |
| 25+ | $1.25 | $31.25 |
| 50+ | $1.18 | $59.00 |
| 100+ | $1.04 | $104.00 |
| N+ | $0.21 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Tube | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.4V @ 1A |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 220 µA |
| Current - Supply (Max) | - |
| PSRR | 60dB (100Hz) |
| Control Features | Enable, Power Good |
| Protection Features | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-5 |
| Supplier Device Package | TO-220-5 |
| ROHS |  |
The MCP1826-0802E/AT from Microchip Technology is a 1A low dropout linear regulator providing a fixed 0.8V output. Its low 0.4V dropout at full load and 220 µA quiescent current make it efficient for battery and industrial applications. The TO-220-5 package ensures excellent thermal performance, while 60dB PSRR at 100Hz delivers clean power for sensitive electronics.
- High Efficiency: 0.4V dropout at 1A minimizes power loss, improving system efficiency.
- Low Power Consumption: 220 µA quiescent current extends battery life in portable designs.
- Stable Output: 60dB PSRR at 100Hz rejects ripple for reliable analog performance.
- Thermal Robustness: TO-220-5 package dissipates heat effectively for continuous 1A operation.
Low-Voltage Digital Cores
Power 0.8V FPGA or ASIC cores with 1A capability and 0.4V dropout, ensuring stable operation from a 1.2V rail.
Battery-Powered Devices
The 220 µA quiescent current extends battery life in portable sensors and IoT nodes while maintaining a clean 0.8V supply.
Noise-Sensitive Analog Circuits
With 60dB PSRR at 100Hz, this LDO attenuates mains-frequency ripple for precision analog front-ends.
Industrial Control Systems
TO-220-5 package handles thermal dissipation for 1A loads in 24V-to-0.8V industrial sensor interfaces.
Post-Regulation for Switching Converters
Use after a buck converter to reduce output ripple and provide a low-noise 0.8V rail for mixed-signal boards.
- Q: What is the output voltage of the MCP1826-0802E/AT?
- A: The fixed output voltage is 0.8V.
- Q: What is the maximum output current?
- A: It can deliver up to 1A of continuous current.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; refer to the datasheet.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.4V at 1A load.
- Q: What is the quiescent current?
- A: The quiescent current is 220 µA.
- Q: What package is available?
- A: This model comes in a TO-220-5 package.
