Microchip Technology MCP1826-3002E/AT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.32 | $1.32 |
| 15+ | $1.28 | $19.20 |
| 25+ | $1.25 | $31.25 |
| 50+ | $1.18 | $59.00 |
| 100+ | $1.04 | $104.00 |
| N+ | $0.21 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Tube | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.4V @ 1A |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 220 µA |
| Current - Supply (Max) | - |
| PSRR | 60dB (100Hz) |
| Control Features | Enable, Power Good |
| Protection Features | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-5 |
| Supplier Device Package | TO-220-5 |
| ROHS |  |

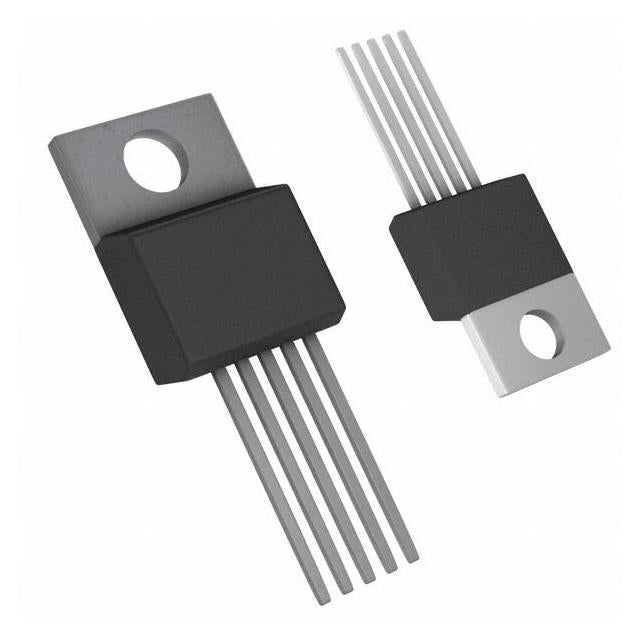

The Microchip MCP1826-3002E/AT is a fixed 3.0V low dropout linear regulator capable of sourcing 1A. It features a low 0.4V dropout at full load and a quiescent current of only 220µA, making it suitable for battery-operated and high-efficiency systems. The TO-220-5 package ensures excellent thermal performance for demanding applications.
- High Current Capacity: 1A output supports power-hungry loads without external pass transistors.
- Low Dropout: 0.4V at 1A allows operation from 3.4V input, maximizing efficiency.
- Excellent Ripple Rejection: 60dB PSRR at 100Hz cleans noisy input rails.
- Low Quiescent Current: 220µA ground current improves battery life in portable designs.
- Robust Thermal Package: TO-220-5 dissipates heat effectively for continuous operation.
High-Current 3.3V to 3.0V Conversion
With 1A capability and 0.4V dropout, the MCP1826-3002E/AT efficiently steps down from a 3.3V rail to a stable 3.0V supply for logic and analog circuits.
Post-Regulation for Switching Supplies
Its 60dB PSRR at 100Hz effectively filters ripple from DC-DC converters, providing clean power for sensitive audio or RF stages.
Battery-Powered Industrial Equipment
The low 220µA quiescent current extends battery life in always-on systems while maintaining 1A peak capability for actuators or transmitters.
Automotive Sensor Power
The TO-220-5 package allows easy heatsinking for under-hood sensors requiring stable 3.0V from a 5V or battery rail.
FPGA and DSP Core Supply
Many FPGAs need a precise 3.0V core; this LDO provides tight regulation and fast transient response for digital loads.
Bench Power Supply Output Stage
As a final linear stage, it delivers clean, low-noise 3.0V with up to 1A for prototyping and test equipment.
- Q: What is the output voltage of the MCP1826-3002E/AT?
- A: The fixed output voltage is 3.0V.
- Q: What is the maximum output current?
- A: It can deliver up to 1A of continuous current.
- Q: What is the input voltage range?
- A: The input voltage range is from 3.0V up to 6.0V (absolute max).
- Q: What is the dropout voltage?
- A: Dropout is typically 0.4V at 1A load.
- Q: What is the quiescent current?
- A: Ground pin current is typically 220 µA at full load.
- Q: What package is available?
- A: This version comes in a TO-220-5 package.
