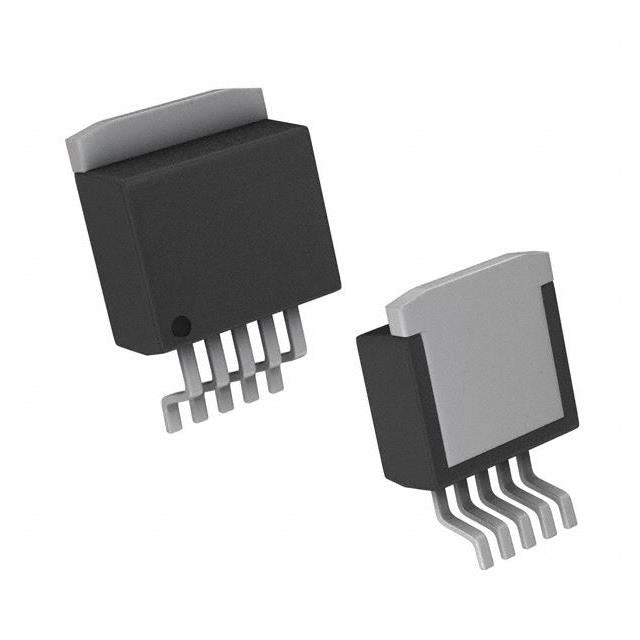

Microchip Technology MCP1826-5002E/ET
Regular price
$1.32
Regular price
$1.39
Sale price
$1.32
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.32 | $1.32 |
| 15+ | $1.28 | $19.20 |
| 25+ | $1.25 | $31.25 |
| 50+ | $1.18 | $59.00 |
| 100+ | $1.04 | $104.00 |
| N+ | $0.21 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Tube | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.4V @ 1A |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 220 µA |
| Current - Supply (Max) | - |
| PSRR | 60dB (100Hz) |
| Control Features | Enable, Power Good |
| Protection Features | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA |
| Supplier Device Package | DDPAK-5 |
| ROHS |  |
The Microchip MCP1826-5002E/ET is a fixed 5V linear regulator designed for high-current applications. It delivers up to 1A with a low dropout voltage of 0.4V at full load. With a quiescent current of 220 µA and 60dB PSRR at 100Hz, it offers reliable and efficient power regulation in a DDPAK-5 package.
- High Output Current: 1A capability supports demanding loads.
- Low Dropout: 0.4V at 1A minimizes power dissipation.
- Stable Operation: 60dB PSRR at 100Hz reduces noise.
- Robust Package: DDPAK-5 offers excellent thermal performance.
High-Current Microcontroller Systems
Delivers up to 1A for power-hungry MCUs and peripherals, with 60dB PSRR at 100Hz for stable operation.
Automotive Infotainment
Provides robust 5V power for audio systems and displays, handling dynamic load changes efficiently.
Industrial Actuators
1A capability supports driving relays and actuators in industrial control systems.
Networking Equipment
Powers routers and switches, ensuring reliable 5V output for communication ICs.
Battery Chargers
Can be used as a post-regulator for charging circuits, providing clean 5V output.
- Q: What is the output voltage of the MCP1826-5002E/ET?
- A: The fixed output voltage is 5V.
- Q: What is the maximum output current?
- A: It can deliver up to 1A.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; please refer to the datasheet.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.4V at 1A load.
- Q: What is the quiescent current?
- A: The quiescent current is 220 µA.
- Q: What package is available?
- A: It comes in a DDPAK-5 package.
Base Product Number ：
MCP1826-5002E
MCP1826-5002E/ET.pdf
