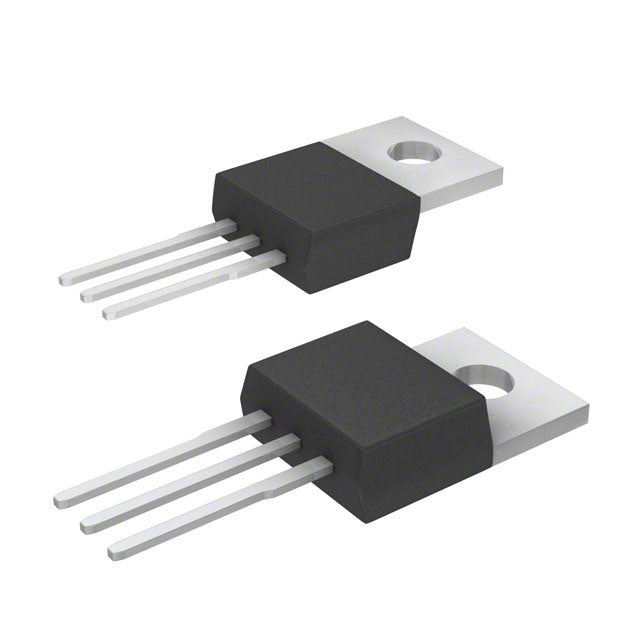

Microchip Technology MCP1826S-1202E/AB
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.25 | $1.25 |
| 15+ | $1.21 | $18.15 |
| 25+ | $1.19 | $29.75 |
| 50+ | $1.12 | $56.00 |
| 100+ | $0.99 | $99.00 |
| N+ | $0.20 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Tube | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 1.2V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.4V @ 1A |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 220 µA |
| Current - Supply (Max) | - |
| PSRR | 60dB (100Hz) |
| Control Features | - |
| Protection Features | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220-3 |
| ROHS |  |
The MCP1826S-1202E/AB from Microchip Technology is a fixed 1.2V low dropout linear regulator capable of delivering 1A of output current. With a low dropout voltage of 0.4V at full load and a quiescent current of 220µA, it is optimized for battery-powered and low-voltage digital applications. The TO-220-3 package provides excellent thermal performance, while 60dB PSRR at 100Hz ensures clean, stable power for sensitive electronics.
