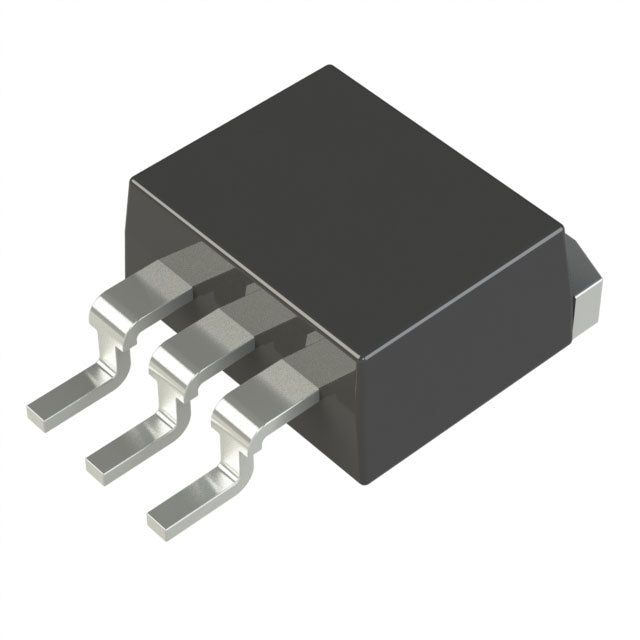

Microchip Technology MCP1826S-3002E/EB
Regular price
$4.50
Regular price
$1.13
Sale price
$4.50
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $4.50 | $4.50 |
| 15+ | $1.04 | $15.60 |
| 25+ | $1.02 | $25.50 |
| 50+ | $0.96 | $48.00 |
| 100+ | $0.85 | $85.00 |
| N+ | $0.17 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Tube | |
| Output Configuration | Active |
| Output Type | Positive |
| Number of Regulators | Fixed |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.4V @ 1A |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 220 μA |
| Current - Supply (Max) | - |
| PSRR | 60dB (100Hz) |
| Control Features | - |
| Protection Features | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA |
| Supplier Device Package | DDPAK-3 |
| ROHS |  |
The MCP1826S-3002E/EB is a fixed 3.0V, 1A LDO regulator from Microchip Technology. It offers a low dropout of 0.4V and a quiescent current of 220 μA. The DDPAK-3 package provides good thermal performance. Suitable for a wide range of 3V applications.
- Versatile 3V Output: Ideal for many digital and analog circuits.
- High Current: 1A output for demanding loads.
- Low Dropout: 0.4V dropout for efficient operation.
- Low Noise: 60dB PSRR at 100Hz for clean power.
Microcontroller Power Supply
Provides a stable 3.0V rail for MCUs, ensuring reliable operation.
Wireless Modules
Powers Wi-Fi, Bluetooth, and Zigbee modules with clean 3.0V supply.
Battery-Powered Devices
Low quiescent current extends battery life in portable electronics.
Sensor Systems
Provides low-noise power to analog and digital sensors.
Automotive Modules
Regulates 5V to 3.0V for automotive control modules.
Consumer Electronics
Used in cameras, drones, and handheld devices.
- Q: What is the output voltage?
- A: Fixed 3.0V output.
- Q: What is the maximum current?
- A: 1A.
- Q: What is the input voltage range?
- A: Input must be above 3.4V; typical max is 6.0V.
- Q: What is the dropout voltage?
- A: 0.4V at 1A load.
- Q: What is the quiescent current?
- A: 220 μA typical.
- Q: What package is this?
- A: DDPAK-3 (TO-252).
Base Product Number ：
MCP1826S-3002E
MCP1826S-3002E/EB.pdf
- Q: What is the output voltage?
- A: Fixed 3.0V output.
- Q: What is the maximum current?
- A: 1A.
- Q: What is the input voltage range?
- A: Input must be above 3.4V; typical max is 6.0V.
- Q: What is the dropout voltage?
- A: 0.4V at 1A load.
- Q: What is the quiescent current?
- A: 220 μA typical.
- Q: What package is this?
- A: DDPAK-3 (TO-252).
×
