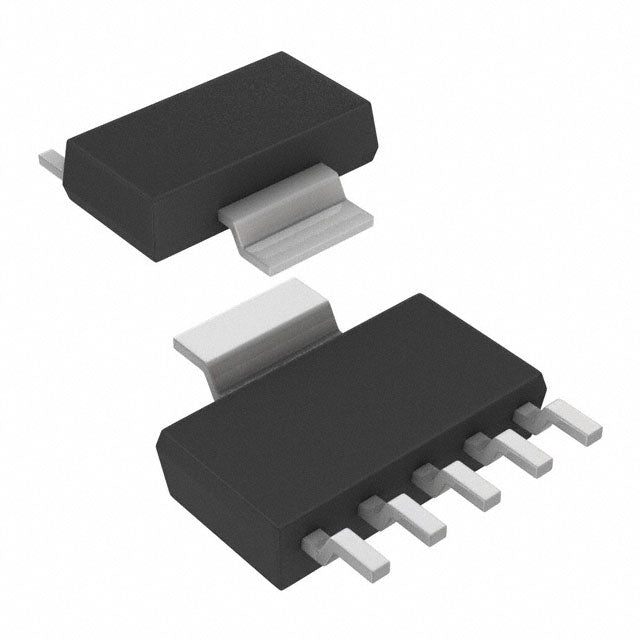

Microchip Technology MCP1826T-0802E/DC
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.60 | $1.60 |
| 15+ | $0.37 | $5.55 |
| 25+ | $0.36 | $9.00 |
| 50+ | $0.34 | $17.00 |
| 100+ | $0.30 | $30.00 |
| N+ | $0.06 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Active |
| Output Type | Positive |
| Number of Regulators | Fixed |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.4V @ 1A |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 220 μA |
| Current - Supply (Max) | - |
| PSRR | 60dB (100Hz) |
| Control Features | Enable, Power Good |
| Protection Features | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-223-6 |
| Supplier Device Package | SOT-223-5 |
| ROHS |  |
The Microchip MCP1826T-0802E/DC is a robust low dropout regulator delivering a fixed 0.8V output with up to 1A of current. It features a low dropout voltage of 0.4V at full load and a quiescent current of 220 μA. With 60dB PSRR at 100Hz, it provides stable power for high-current digital applications. The SOT-223-5 package ensures efficient heat dissipation.
- High Current Capacity: Supports up to 1A, ideal for power-hungry digital loads.
- Low Dropout: 0.4V dropout at 1A ensures efficient operation from low input voltages.
- Good Ripple Rejection: 60dB PSRR at 100Hz filters low-frequency noise.
- Thermal Efficiency: SOT-223-5 package provides excellent heat dissipation for high-current operation.
High-Current Digital Cores
The 1A output capability makes it suitable for powering low-voltage digital cores in FPGAs and ASICs, requiring stable 0.8V.
Server Motherboards
Provides reliable power for memory and logic circuits in servers, with low dropout to maintain efficiency under heavy loads.
Telecom Equipment
Delivers clean 0.8V power to networking processors, ensuring reliable data transmission in base stations and routers.
Automotive Infotainment
Powers infotainment processors with stable voltage, with 60dB PSRR at 100Hz to filter alternator noise.
Industrial Automation
Supplies power to PLCs and robotic controllers, offering high current capacity for demanding applications.
Test and Measurement
Provides a precise 0.8V reference for calibration equipment, ensuring accurate measurements.
- Q: What is the output voltage of the MCP1826T-0802E/DC?
- A: The fixed output voltage is 0.8V.
- Q: What is the maximum output current?
- A: It can deliver up to 1A.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; please refer to the datasheet.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.4V at 1A.
- Q: What is the quiescent current?
- A: The quiescent current is 220 μA.
- Q: What package is available?
- A: It comes in a SOT-223-5 package.
