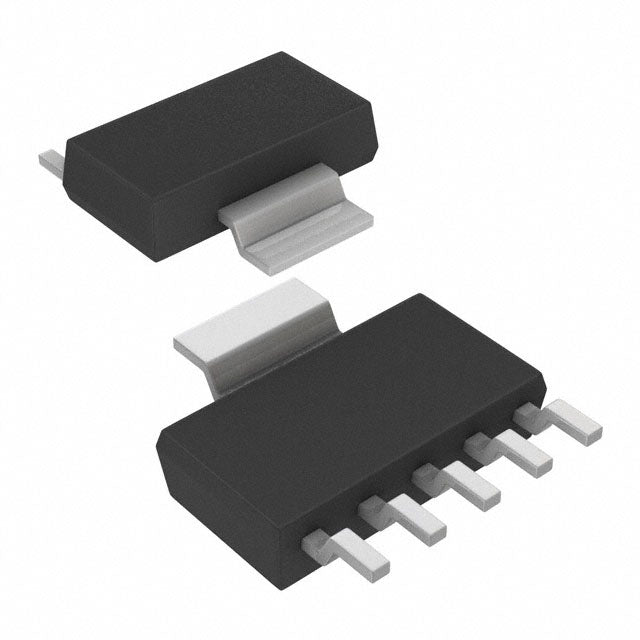

Microchip Technology MCP1826T-1202E/DC
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.86 | $0.86 |
| 15+ | $0.84 | $12.60 |
| 25+ | $0.82 | $20.50 |
| 50+ | $0.77 | $38.50 |
| 100+ | $0.68 | $68.00 |
| N+ | $0.14 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 1.2V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.4V @ 1A |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 220 µA |
| Current - Supply (Max) | - |
| PSRR | 60dB (100Hz) |
| Control Features | Enable, Power Good |
| Protection Features | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-223-6 |
| Supplier Device Package | SOT-223-5 |
The MCP1826 from Microchip Technology is a 1A low dropout regulator with a fixed 1.2V output. It features a low 0.4V dropout at full load and 220 µA quiescent current, making it suitable for battery and high-efficiency applications. The SOT-223-5 package is easy to integrate.
- High Current: 1A output supports demanding digital loads.
- Low Dropout: 0.4V at 1A minimizes power loss.
- Low Quiescent Current: 220 µA improves battery life.
- Stable Output: 60dB PSRR at 100Hz filters low-frequency noise.
FPGA Core Voltage
Provides a stable 1.2V rail for FPGA and CPLD cores, with 1A capacity for high-density logic.
DDR Memory Termination
Regulates 1.2V for DDR2/DDR3 VTT supplies, ensuring signal integrity in memory modules.
Low-Voltage Microcontrollers
Powers 1.2V MCUs in energy-efficient embedded systems, reducing dynamic power consumption.
Optical Transceivers
Delivers clean 1.2V to laser drivers and photodetectors, with low noise for reliable data transmission.
Battery-Powered Instruments
The 220 µA quiescent current and low dropout maximize runtime in portable measurement tools.
Server Motherboards
Provides auxiliary 1.2V for chipset logic, with thermal protection for reliable operation.
- Q: What is the output voltage?
- A: The fixed output voltage is 1.2V.
- Q: What is the maximum output current?
- A: It can deliver up to 1A.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; refer to the datasheet.
- Q: What is the dropout voltage?
- A: Dropout is 0.4V at 1A load.
- Q: What is the quiescent current?
- A: Quiescent current is 220 µA.
- Q: What package is available?
- A: It comes in a SOT-223-5 package.
