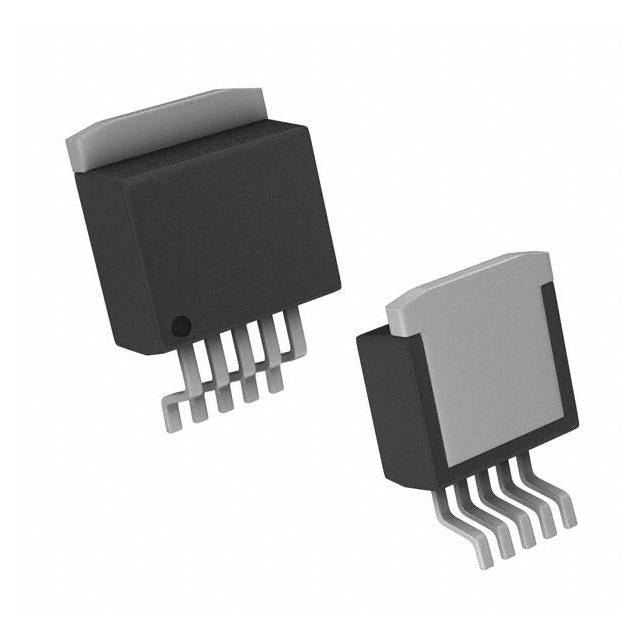

Microchip Technology MCP1826T-1202E/ET
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.32 | $1.32 |
| 15+ | $1.28 | $19.20 |
| 25+ | $1.25 | $31.25 |
| 50+ | $1.18 | $59.00 |
| 100+ | $1.04 | $104.00 |
| N+ | $0.21 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 1.2V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.4V @ 1A |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 220 µA |
| Current - Supply (Max) | - |
| PSRR | 60dB (100Hz) |
| Control Features | Enable, Power Good |
| Protection Features | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA |
| Supplier Device Package | DDPAK-5 |
| ROHS |  |
The MCP1826T-1202E/ET from Microchip Technology is a high-current LDO regulator delivering a fixed 1.2V output with up to 1A. Its low dropout voltage of 0.4V ensures efficient operation in low-voltage applications. The DDPAK-5 package provides excellent thermal performance for continuous high-current loads.
- High Current at Low Voltage: 1A at 1.2V supports modern low-voltage processors.
- Low Dropout: 0.4V dropout maximizes headroom in tight voltage budgets.
- Stable Output: Precise 1.2V regulation for sensitive digital circuits.
- Thermal Management: DDPAK-5 package handles heat dissipation effectively.
Low-Voltage Microcontrollers
Provides a stable 1.2V rail for low-power MCUs, enabling energy-efficient operation in battery devices.
FPGA Core Supplies
Delivers 1A at 1.2V for FPGA core logic, ensuring reliable performance in high-speed computing.
DSP Processors
Powers digital signal processors requiring precise 1.2V for signal processing tasks.
Memory Modules
Supplies 1.2V to DDR4/DDR5 memory, maintaining data integrity.
Portable Devices
Ideal for smartphones and tablets needing efficient 1.2V for application processors.
Embedded Systems
Provides robust 1.2V for industrial embedded controllers, ensuring stable operation.
- Q: What is the output voltage of the MCP1826T-1202E/ET?
- A: The output voltage is 1.2V.
- Q: What is the maximum output current?
- A: The maximum output current is 1A.
- Q: What is the input voltage range?
- A: The input voltage is 1.2V (minimum).
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.4V at 1A.
- Q: What is the quiescent current?
- A: The quiescent current is 220µA.
- Q: What package is available?
- A: The package is DDPAK-5.
