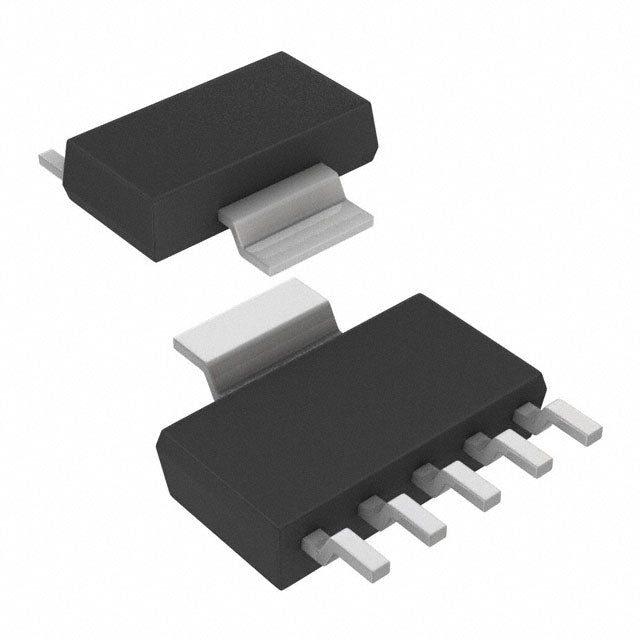

Microchip Technology MCP1826T-3002E/DC
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.86 | $0.86 |
| 15+ | $0.84 | $12.60 |
| 25+ | $0.82 | $20.50 |
| 50+ | $0.77 | $38.50 |
| 100+ | $0.68 | $68.00 |
| N+ | $0.14 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.4V @ 1A |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 220 µA |
| Current - Supply (Max) | - |
| PSRR | 60dB (100Hz) |
| Control Features | Enable, Power Good |
| Protection Features | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-223-6 |
| Supplier Device Package | SOT-223-5 |
| ROHS |  |
The MCP1826T-3002E/DC from Microchip Technology is a 1A low-dropout regulator offering a fixed 3.0V output. It features a low dropout voltage of 0.4V at full load and a quiescent current of 220µA. With 60dB PSRR at 100Hz, it provides stable power for a variety of applications. The SOT-223-5 package ensures good thermal performance and ease of assembly.
- Low Dropout Voltage: 0.4V at 1A enables efficient operation from 3.3V or 5V rails.
- High Output Current: 1A supports power-hungry loads.
- Good PSRR: 60dB at 100Hz filters low-frequency noise.
- Thermally Efficient Package: SOT-223-5 dissipates heat effectively.
3V Logic Power Supply
Provides a stable 3.0V rail for legacy logic ICs and microcontrollers, with 1A current capability and 60dB PSRR at 100Hz.
Battery-Powered Consumer Electronics
Low dropout (0.4V) and 220µA quiescent current make it suitable for remote controls and portable gaming devices.
Automotive Body Electronics
Powers 3V sensors and control modules in vehicles, with thermal shutdown for reliability in harsh environments.
Industrial Control Systems
Delivers clean 3V power to PLCs and motor controllers, with SOT-223 package for easy thermal management.
Networking Peripherals
Regulates 3V for Ethernet PHYs and switches, ensuring stable operation in routers and modems.
Test and Measurement Equipment
Provides low-noise 3V supply for precision instruments, with 60dB PSRR reducing line noise.
- Q: What is the output voltage of the MCP1826T-3002E/DC?
- A: The fixed output voltage is 3.0V.
- Q: What is the maximum output current?
- A: It can deliver up to 1A of current.
- Q: What is the input voltage range?
- A: The input voltage range is 2.0V to 6.0V (typical for this family; verify with datasheet).
- Q: What is the dropout voltage?
- A: Dropout voltage is typically 0.4V at 1A load.
- Q: What is the quiescent current?
- A: Quiescent current is 220 µA.
- Q: What package is available?
- A: It comes in a SOT-223-5 package.
