MCP2515-E/ML

MCP2515-E/ML Stand-Alone CAN Controller with SPI Interface

The MCP2515-E/ML is a high-performance, stand-alone CAN 2.0 controller IC from Microchip Technology, designed for embedded systems, industrial automation, and automotive applications. This second-generation CAN controller features an SPI interface for seamless integration with microcontrollers and processors.

Key Features & Benefits

• CAN 2.0 Protocol Support: Full compliance with CAN 2.0A and CAN 2.0B standards for reliable communication
• SPI Interface: Easy integration with a wide range of microcontrollers via standard SPI bus
• Wide Operating Voltage: 2.7V to 5.5V supply range for flexible system design
• Extended Temperature Range: -40°C to 125°C operation for harsh industrial and automotive environments

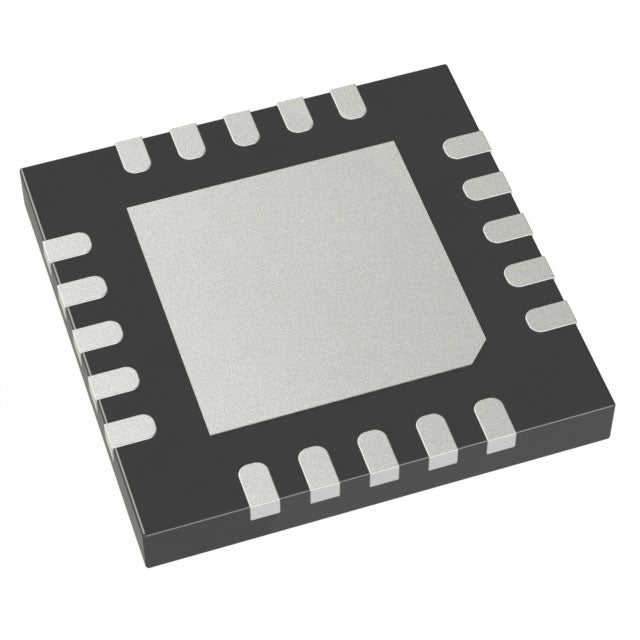

• Compact Package: 20-QFN (4x4mm) with exposed pad for excellent thermal performance
• Low Power Consumption: Only 10mA typical supply current
• RoHS Compliant: Environmentally friendly and meets global regulatory standards

Applications

• Automotive electronics and vehicle networks
• Industrial automation and control systems
• Building automation and HVAC systems
• Medical equipment communication
• Embedded systems requiring CAN bus connectivity
• IoT devices with CAN protocol requirements
