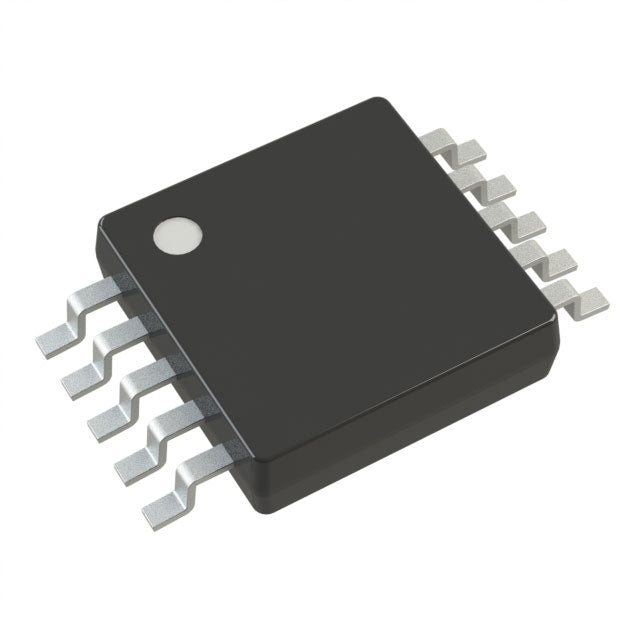

Microchip Technology MCP33111-05-E/MS
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.72 | $2.72 |
| 15+ | $2.63 | $39.45 |
| 25+ | $2.57 | $64.25 |
| 50+ | $2.43 | $121.50 |
| 100+ | $2.15 | $215.00 |
| N+ | $0.43 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 500k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | SPI |
| Configuration | ADC |
| Ratio - S/H:ADC | 0:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 5.5V |
| Features | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-MSOP |
| ROHS |  |
The MCP33111-05-E/MS is a 12-bit analog-to-digital converter from Microchip Technology, designed for high-performance and low-power applications. It features a single input channel and supports a maximum sampling rate of 500k SPS. The SPI interface ensures simple connectivity to microcontrollers and digital systems. Housed in a compact 10-pin MSOP package, it operates over a wide temperature range of -40°C to 125°C, making it suitable for automotive, industrial, and portable applications.
- High Resolution: 12-bit accuracy for precise measurement in critical applications.
- Fast Sampling: 500kSPS rate captures dynamic signals effectively.
- SPI Interface: Simple and fast communication with standard SPI peripherals.
- Wide Temperature Range: -40°C to 125°C for automotive and industrial use.
- Compact Package: Small MSOP footprint saves valuable PCB space.
Portable Instrumentation
The MCP33111-05-E/MS's low power consumption and small MSOP package make it ideal for battery-powered portable instruments like multimeters and data loggers.
Sensor Signal Conditioning
With 12-bit resolution and 500kSPS, this ADC is perfect for digitizing signals from temperature, pressure, and light sensors in industrial and consumer applications.
Motor Control
The fast sampling rate allows for precise current and voltage monitoring in motor control loops, improving efficiency and response time in variable speed drives.
Medical Devices
In portable medical devices like glucose monitors and pulse oximeters, the MCP33111-05-E/MS provides accurate conversion of biosignals with minimal power draw.
Automotive Electronics
Operating from -40°C to 125°C, this ADC is suitable for automotive sensor interfaces, such as battery monitoring and engine control modules.
- Q: What is the MCP33111-05-E/MS?
- A: The MCP33111-05-E/MS is a 12-bit analog-to-digital converter from Microchip Technology, featuring a standard ADC architecture.
- Q: What is the resolution of this ADC?
- A: It provides 12-bit resolution, offering 4096 discrete levels for accurate signal conversion.
- Q: What is the sampling rate?
- A: The MCP33111-05-E/MS supports a maximum sampling rate of 500k SPS, suitable for moderate to high-speed applications.
- Q: How many channels does it have?
- A: It has a single input channel, ideal for applications requiring one dedicated analog input.
- Q: What interface does it use?
- A: It uses the SPI interface for digital communication, ensuring easy integration with microcontrollers.
- Q: What is the package type?
- A: It is available in a 10-pin TFSOP/MSOP package (0.118", 3.00mm width), a compact surface-mount package.
