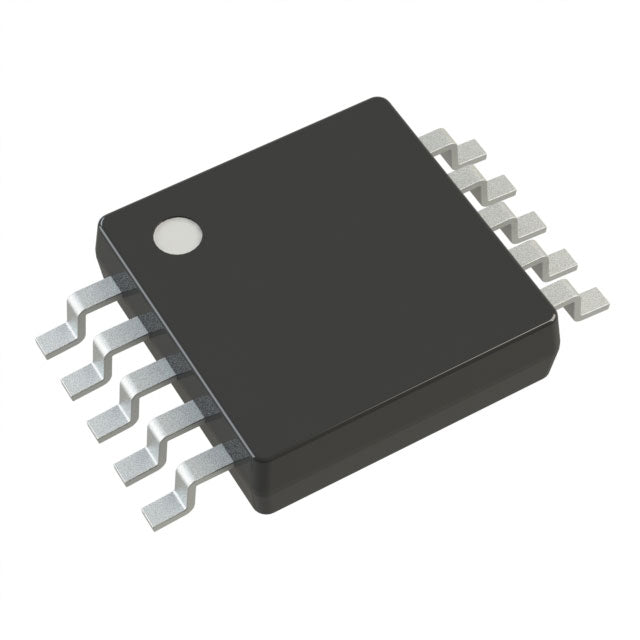

Microchip Technology MCP33111D-10-E/MS
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $10.00 | $10.00 |
| 15+ | $2.30 | $34.50 |
| 25+ | $2.25 | $56.25 |
| 50+ | $2.13 | $106.50 |
| 100+ | $1.88 | $188.00 |
| N+ | $0.38 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Tube | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 1M |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | SPI |
| Configuration | ADC |
| Ratio - S/H:ADC | 0:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 5.5V |
| Features | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-MSOP |
| ROHS |  |
The MCP33111D-10-E/MS from Microchip Technology is a high-performance 12-bit Analog-to-Digital Converter (ADC) featuring a fast 1 MSPS sampling rate. This single-channel device utilizes an SPI interface for seamless digital communication and requires an external voltage reference for precise conversions. Housed in a compact 10-MSOP package, it is designed for space-constrained applications. Its wide operating temperature range makes it suitable for demanding industrial, automotive, and medical environments where reliable and accurate signal digitization is essential.
- High-Speed Conversion: The 1 MSPS sampling rate enables rapid data acquisition, making it ideal for real-time control and high-frequency signal analysis.
- Precise 12-Bit Resolution: Provides accurate digital representation of analog signals, ensuring high fidelity in measurement and monitoring systems.
- Wide Temperature Range: Operates reliably from -40°C to +125°C, suitable for harsh industrial and automotive environments.
- Compact Package: The small 10-MSOP footprint saves valuable board space in portable and densely packed electronic designs.
- Standard SPI Interface: Simplifies integration with microcontrollers and digital signal processors, reducing design complexity.
High-Speed Data Acquisition Systems
The 1 MSPS sampling rate and 12-bit resolution make the MCP33111D-10-E/MS ideal for high-speed data acquisition systems where fast and accurate signal digitization is required, such as in portable instrumentation and control loops.
Sensor Signal Digitization
With its SPI interface and single-channel input, this ADC is perfect for digitizing signals from a variety of sensors, including temperature probes, pressure transducers, and optical sensors, ensuring precise digital representation for further processing.
Industrial Automation and Process Control
The wide operating temperature range of -40°C to +125°C allows for reliable deployment in harsh industrial environments, making it suitable for monitoring and control applications in factory automation and process control systems.
Medical Instrumentation
The high-speed conversion capability and 12-bit accuracy are well-suited for medical devices such as patient monitoring systems and diagnostic equipment, where rapid and precise data conversion is critical.
Automotive Sensor Interfaces
Its robust temperature range and SPI interface make it a viable option for automotive sensor applications, including battery management systems and motor control, requiring reliable analog-to-digital conversion.
Portable Battery-Powered Devices
The low-power operation of the MCP33111D-10-E/MS, combined with its small MSOP package, makes it an excellent choice for portable and battery-powered devices where space and power efficiency are paramount.
- Q: What is the resolution of the MCP33111D-10-E/MS?
- A: The MCP33111D-10-E/MS is a 12-bit Analog-to-Digital Converter (ADC).
- Q: What is the sampling rate of this ADC?
- A: It supports a sampling rate of 1 MSPS (1 million samples per second).
- Q: How many input channels does it have?
- A: This device features a single (1) input channel.
- Q: What digital interface does the MCP33111D-10 use?
- A: It uses a Serial Peripheral Interface (SPI) for communication.
- Q: What is the operating temperature range?
- A: It operates over an industrial temperature range of -40°C to +125°C.
- Q: What package is available?
- A: It comes in a 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) package.
