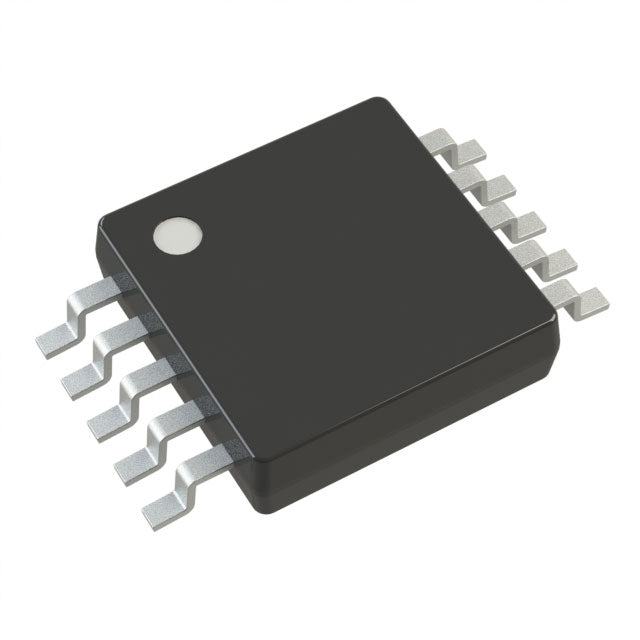

Microchip Technology MCP33151-10T-E/MS
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.67 | $2.67 |
| 15+ | $2.59 | $38.85 |
| 25+ | $2.53 | $63.25 |
| 50+ | $2.39 | $119.50 |
| 100+ | $2.11 | $211.00 |
| N+ | $0.42 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 1M |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | SPI |
| Configuration | ADC |
| Ratio - S/H:ADC | 0:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 5.5V |
| Features | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-MSOP |
| ROHS |  |
The Microchip MCP33151-10T-E/MS is a 14-bit analog-to-digital converter (ADC) designed for high-speed, high-accuracy signal conversion. With a sampling rate of 1 MSPS and a standard SPI interface, it offers a straightforward path for adding precision analog inputs to digital systems. This single-channel ADC is available in a compact 10-MSOP package, making it suitable for space-constrained applications. It is engineered to operate reliably across a wide temperature range, making it a versatile choice for industrial, medical, and communication equipment.
- Fast and Accurate: The 14-bit resolution and 1 MSPS sampling rate deliver high-fidelity conversion for demanding applications.
- Space-Saving Package: The 10-MSOP package is significantly smaller than traditional DIP packages, saving valuable board space.
- Wide Temperature Operation: Rated for -40°C to 125°C, it is suitable for use in both commercial and industrial environments.
- Standard SPI Interface: The SPI interface ensures compatibility with a broad range of microcontrollers, reducing development time.
High-Frequency Signal Analysis
The 1 MSPS sampling rate makes this ADC suitable for analyzing high-frequency signals in applications like acoustics and sonar, where capturing rapid waveform changes is essential.
Data Acquisition Cards
Its 14-bit resolution and SPI interface make it a great choice for multi-channel data acquisition cards, providing accurate and fast digitization for test and measurement equipment.
Medical Ultrasound Systems
In medical imaging, the high speed and precision of this ADC help in processing the analog echoes received by ultrasound transducers, contributing to clearer images.
Industrial Process Control
This ADC can be used in industrial control loops to digitize feedback signals from sensors, ensuring precise and responsive control of machinery and processes.
Portable Instrumentation
The small MSOP package and low power consumption of SAR ADCs make this part ideal for battery-powered portable instruments like handheld multimeters and data loggers.
Communication Systems
In base stations and software-defined radios, this ADC can be used to digitize intermediate frequency (IF) signals, enabling digital signal processing for improved performance.
- Q: What is the resolution of the MCP33151-10T-E/MS?
- A: This ADC provides a 14-bit resolution, enabling precise digital representation of analog input signals.
- Q: What is the maximum sampling rate?
- A: The MCP33151-10T-E/MS can achieve a maximum sampling rate of 1 MSPS (1 million samples per second).
- Q: How many channels does this ADC have?
- A: It features a single (1) input channel, suitable for dedicated high-speed signal conversion.
- Q: What interface does it use?
- A: It uses the SPI (Serial Peripheral Interface) for high-speed data transfer to a host controller.
- Q: What is the architecture of this device?
- A: It is based on a successive approximation register (SAR) architecture, offering a good balance of speed and power efficiency.
- Q: What package is available?
- A: The device is offered in a 10-TFSOP or 10-MSOP package with a width of 3.00mm, ideal for compact designs.
