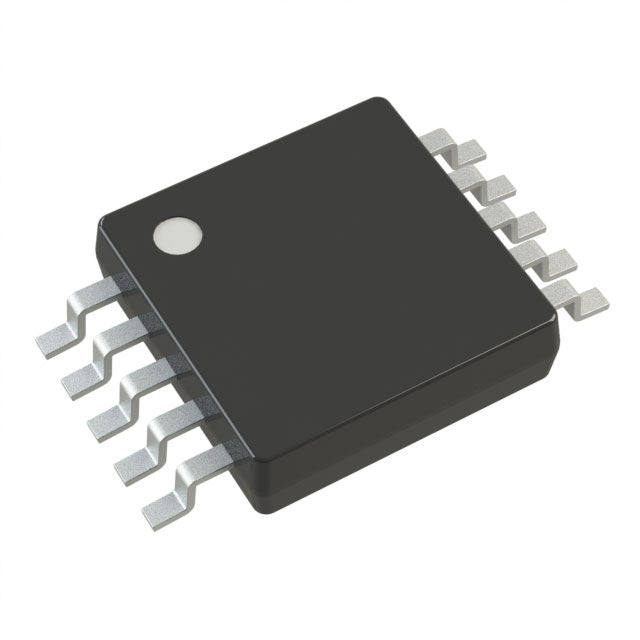

Microchip Technology MCP33151D-05T-E/MS
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.99 | $1.99 |
| 15+ | $1.92 | $28.80 |
| 25+ | $1.88 | $47.00 |
| 50+ | $1.78 | $89.00 |
| 100+ | $1.57 | $157.00 |
| N+ | $0.31 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 500k |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | SPI |
| Configuration | ADC |
| Ratio - S/H:ADC | 0:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 5.5V |
| Features | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-MSOP |
| ROHS |  |
The MCP33151D-05T-E/MS from Microchip Technology is a high-performance 14-bit Analog-to-Digital Converter (ADC) designed for precision signal acquisition. It offers a fast sampling rate of 500k SPS and a single input channel, making it an excellent choice for applications requiring accurate and rapid conversion. Featuring an SPI interface and external reference, this ADC ensures flexible integration with a wide range of microcontrollers. Its robust design supports an extended temperature range of -40°C to 125°C, suitable for demanding industrial and automotive environments. The compact 10-MSOP package saves valuable board space while delivering reliable performance.
- High Resolution: 14-bit resolution provides detailed and accurate digital representation of analog signals, minimizing quantization errors.
- Fast Sampling Rate: 500k SPS enables capture of rapidly changing signals, suitable for real-time control and measurement systems.
- Extended Temperature Range: Operates reliably from -40°C to 125°C, ideal for harsh automotive and industrial environments.
- Compact Package: The small 10-MSOP footprint reduces PCB area, enabling miniaturized product designs.
- Standard SPI Interface: Easy integration with most microcontrollers, simplifying firmware development and system design.
High-Precision Sensor Digitization
The 14-bit resolution and 500k SPS sampling rate make this ADC ideal for digitizing outputs from precision sensors such as strain gauges and pressure transducers, ensuring accurate data capture in industrial control loops.
Portable Data Acquisition Systems
With its low-power operation and compact MSOP package, the MCP33151D-05T-E/MS is perfect for battery-powered data loggers and portable measurement devices requiring reliable SPI communication.
Automotive Sensor Interfaces
Its extended temperature range (-40°C to 125°C) qualifies it for automotive environments, where it can convert signals from temperature, position, and flow sensors with high fidelity.
Industrial Process Control
The fast 500k SPS sampling rate enables real-time monitoring and control in industrial automation, converting analog signals from PLCs and transmitters into digital data for precise process regulation.
Medical Instrumentation
The high accuracy of 14-bit conversion supports medical devices like patient monitors and diagnostic equipment, where precise signal integrity is critical for reliable readings.
Embedded System Analog Front-End
As a single-channel ADC with SPI, it serves as a straightforward analog front-end in embedded systems, simplifying PCB design and reducing component count in mixed-signal applications.
- Q: What is the resolution of the MCP33151D-05T-E/MS?
- A: This ADC features a 14-bit resolution, providing high-precision digital conversion of analog signals.
- Q: What is the maximum sampling rate?
- A: The MCP33151D-05T-E/MS supports a sampling rate of 500k SPS (samples per second), ideal for moderate-speed applications.
- Q: How many input channels does it have?
- A: It has a single (1) input channel, making it suitable for dedicated signal conversion in single-sensor applications.
- Q: What digital interface does this ADC use?
- A: It uses the SPI (Serial Peripheral Interface) for high-speed communication with microcontrollers and digital systems.
- Q: What is the operating temperature range?
- A: The device operates over an extended industrial temperature range of -40°C to 125°C.
- Q: What package is the MCP33151D-05T-E/MS available in?
- A: It comes in a compact 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) package.
