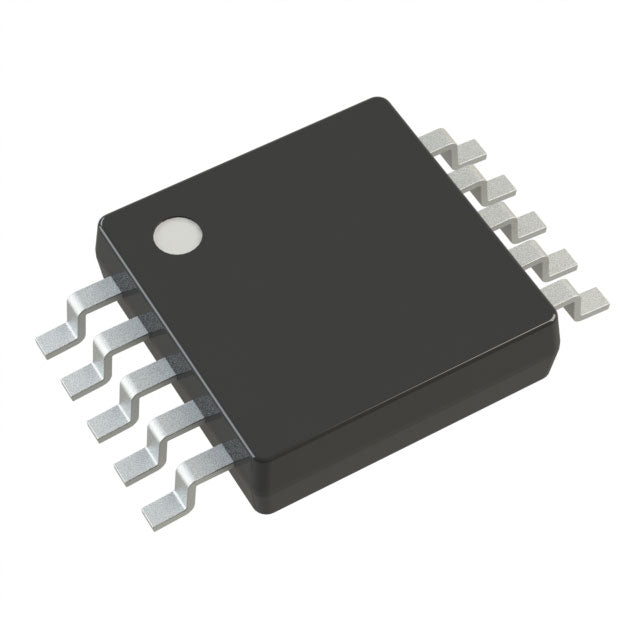

Microchip Technology MCP33151D-10T-E/MS
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.67 | $2.67 |
| 15+ | $2.59 | $38.85 |
| 25+ | $2.53 | $63.25 |
| 50+ | $2.39 | $119.50 |
| 100+ | $2.11 | $211.00 |
| N+ | $0.42 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 1M |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | SPI |
| Configuration | ADC |
| Ratio - S/H:ADC | 0:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 5.5V |
| Features | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-MSOP |
| ROHS |  |
The Microchip MCP33151D-10T-E/MS is a high-speed, 14-bit analog-to-digital converter (ADC) designed for precision applications. It features a fast 1 MSPS sampling rate and a simple SPI interface, making it easy to integrate into a wide variety of digital systems. This single-channel ADC is housed in a compact 10-MSOP package, ideal for space-constrained designs. With its robust operating temperature range, it is a reliable choice for demanding industrial, automotive, and test equipment applications.
- High-Speed Precision: Combines 14-bit resolution with a 1 MSPS sampling rate for accurate capture of fast signals.
- Compact and Efficient: The small 10-MSOP package is perfect for space-limited designs without compromising performance.
- Reliable in Extreme Conditions: Operates over a -40°C to 125°C temperature range, ensuring dependable performance in harsh environments.
- Simplified Integration: The SPI interface allows for easy connection to a wide range of microcontrollers and DSPs.
Precision Motor Control
In motor control systems, the 1 MSPS sampling rate and 14-bit resolution allow for precise current and voltage sensing, enabling smoother and more efficient motor operation.
High-Speed Data Logging
This ADC is well-suited for high-speed data loggers that need to capture transient events or fast-changing signals without missing critical data points.
Advanced Driver Assistance Systems (ADAS)
With its wide temperature range, this ADC can be used in automotive ADAS applications, such as processing signals from radar or lidar sensors for object detection.
Industrial Robotics
In robotics, this ADC can digitize feedback from joint encoders and force sensors at high speed, enabling precise and responsive robotic movements.
Energy Harvesting Systems
For energy harvesting applications, the low power consumption of this SAR ADC is beneficial, allowing for efficient monitoring of power generation and storage.
Test and Measurement Equipment
The high accuracy and speed make it an excellent choice for benchtop instruments like oscilloscopes and spectrum analyzers, where signal fidelity is paramount.
- Q: What is the resolution of the MCP33151D-10T-E/MS?
- A: This ADC offers a 14-bit resolution, providing high precision in converting analog signals to digital data.
- Q: What is the sampling rate?
- A: The MCP33151D-10T-E/MS supports a maximum sampling rate of 1 MSPS (1 million samples per second).
- Q: How many input channels are available?
- A: This device has a single (1) input channel, ideal for dedicated high-speed signal paths.
- Q: What digital interface does it feature?
- A: It features an SPI (Serial Peripheral Interface) for efficient communication with microcontrollers.
- Q: What is the ADC architecture?
- A: It uses a successive approximation register (SAR) architecture, known for its high speed and low power consumption.
- Q: What is the package type?
- A: The device comes in a 10-TFSOP or 10-MSOP package (0.118", 3.00mm Width), suitable for compact PCBs.
