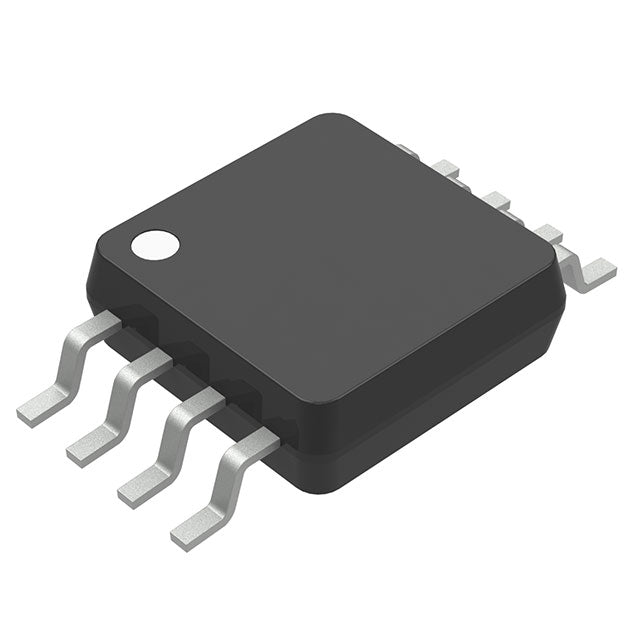

Microchip Technology MCP3422A0T-E/MS
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $11.44 | $11.44 |
| 15+ | $2.63 | $39.45 |
| 25+ | $2.57 | $64.25 |
| 50+ | $2.43 | $121.50 |
| 100+ | $2.15 | $215.00 |
| N+ | $0.43 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Number of Bits | 18 |
| Sampling Rate (Per Second) | 3.75 |
| Number of Inputs | 2 |
| Input Type | Differential |
| Data Interface | I2C |
| Configuration | MUX-PGA-ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | Internal |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Features | PGA |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-MSOP |
| ROHS |  |
The MCP3422A0T-E/MS is an 18-bit Analog-to-Digital Converter (ADC) from Microchip Technology, offering high precision in a compact 8-MSOP package. It features 2 input channels, an internal reference, and a sampling rate of 3.75 SPS. The device uses an I2C interface for communication, making it easy to integrate into various systems. This ADC is ideal for applications where space is limited but accuracy is critical, such as portable instrumentation and industrial sensors.
- Compact Size: The 8-MSOP package saves valuable board space.
- High Resolution: 18-bit conversion ensures precise measurements.
- Low Power: Suitable for battery-powered applications.
- Wide Temperature Range: Operates from -40°C to 125°C.
Compact Sensor Modules
The small 8-MSOP package of the MCP3422A0T-E/MS makes it ideal for space-constrained sensor modules and portable devices.
Industrial Process Monitoring
With its high resolution and wide temperature range, it is suitable for industrial process monitoring and control systems.
Medical Devices
The high accuracy and low power consumption make it suitable for battery-powered medical devices like glucose meters.
Smart Agriculture
Used in soil moisture and weather monitoring systems, this ADC provides precise data for smart agriculture applications.
Energy Harvesting Systems
Its low power consumption makes it compatible with energy harvesting systems where power is limited.
- Q: What is the MCP3422A0T-E/MS?
- A: It is an 18-bit Analog-to-Digital Converter (ADC) from Microchip Technology with a MUX-PGA-ADC architecture.
- Q: What is the resolution?
- A: It has an 18-bit resolution.
- Q: What is the sampling rate?
- A: The sampling rate is 3.75 SPS.
- Q: How many channels does it have?
- A: It features 2 channels.
- Q: What interface does it use?
- A: It uses the I2C interface.
- Q: What is the package type?
- A: It comes in an 8-MSOP (0.118", 3.00mm Width) package.
