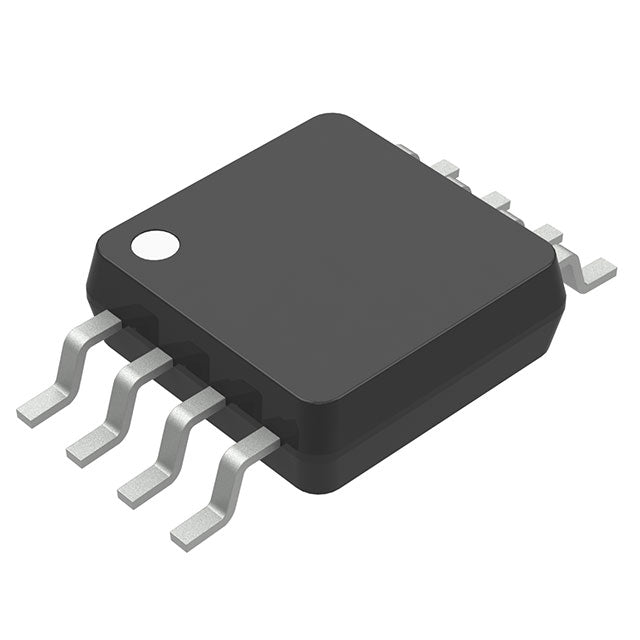

Microchip Technology MCP3426A2T-E/MS
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $10.44 | $10.44 |
| 15+ | $2.40 | $36.00 |
| 25+ | $2.35 | $58.75 |
| 50+ | $2.22 | $111.00 |
| 100+ | $1.96 | $196.00 |
| N+ | $0.39 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 15 |
| Number of Inputs | 2 |
| Input Type | Differential |
| Data Interface | I2C |
| Configuration | MUX-PGA-ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | Internal |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Features | PGA |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-MSOP |
| ROHS |  |
The MCP3426A2T-E/MS is a 16-bit delta-sigma Analog-to-Digital Converter featuring a multiplexer, programmable gain amplifier, and internal reference. It provides two differential input channels and communicates via I2C. With a sampling rate of 15 SPS, it is optimized for high-accuracy, low-speed measurements. The device operates over -40°C to 125°C and comes in a compact MSOP-8 package, making it ideal for industrial and portable applications.
- High Accuracy: 16-bit delta-sigma conversion ensures precise readings.
- Integrated MUX: Simplifies multi-sensor interfacing.
- Programmable Gain: Adjustable PGA accommodates various signal levels.
- Low Power: Suitable for battery-operated devices.
- Small Footprint: MSOP-8 package saves PCB space.
Industrial Process Control
The 16-bit resolution and differential inputs allow accurate monitoring of industrial sensors in process control systems.
Environmental Monitoring
Ideal for air quality sensors and weather stations, the low sampling rate and I2C interface enable efficient data collection.
Weighing Systems
High resolution and internal PGA make it suitable for load cell and strain gauge applications in electronic scales.
Energy Harvesting Systems
Low power consumption makes it perfect for energy-harvesting nodes that require minimal current draw.
Laboratory Instruments
Precision measurement capabilities support use in benchtop multimeters and calibration equipment.
- Q: What is the MCP3426A2T-E/MS?
- A: It is a 16-bit delta-sigma ADC with an integrated MUX-PGA-ADC architecture from Microchip.
- Q: What is the resolution?
- A: The resolution is 16 bits, providing high precision.
- Q: What is the sampling rate?
- A: The sampling rate is 15 SPS.
- Q: How many channels are available?
- A: It has 2 differential input channels.
- Q: What interface does it support?
- A: It supports the I2C interface.
- Q: What is the package?
- A: It is available in an 8-TSSOP or 8-MSOP package.
