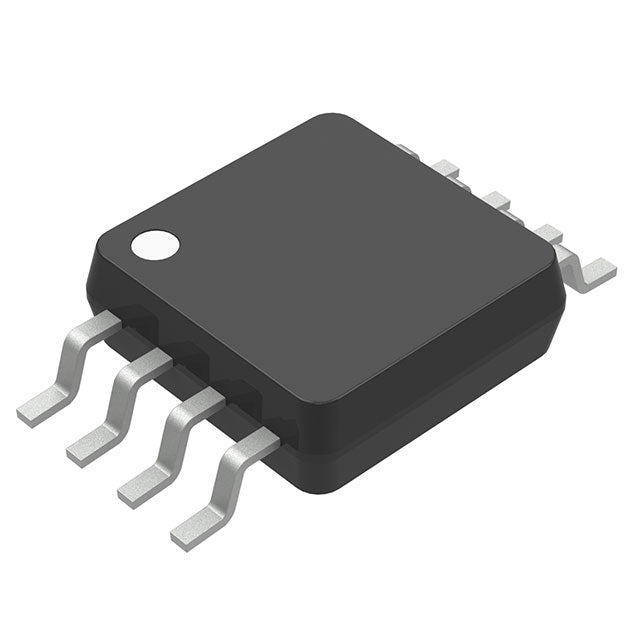

Microchip Technology MCP3426A3T-E/MS
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $10.44 | $10.44 |
| 15+ | $2.40 | $36.00 |
| 25+ | $2.35 | $58.75 |
| 50+ | $2.22 | $111.00 |
| 100+ | $1.96 | $196.00 |
| N+ | $0.39 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 15 |
| Number of Inputs | 2 |
| Input Type | Differential |
| Data Interface | I2C |
| Configuration | MUX-PGA-ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | Internal |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Features | PGA |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-MSOP |
| ROHS |  |
The MCP3426A3T-E/MS is a 16-bit delta-sigma ADC from Microchip, featuring an integrated multiplexer and programmable gain amplifier. It offers two differential input channels and communicates via I2C. The device has a sampling rate of 15 SPS and includes an internal voltage reference. Its wide operating temperature range and compact MSOP-8 package make it suitable for industrial, medical, and portable applications.
- 16-Bit Delta-Sigma: Ensures high-resolution conversion.
- Internal Reference: Reduces external component count.
- 2 Differential Channels: Flexible input configuration.
- I2C Interface: Easy microcontroller integration.
- Wide Temp Range: -40°C to 125°C for harsh environments.
Precision Instrumentation
16-bit resolution and internal reference make it ideal for precision digital multimeters and panel meters.
Building Automation
Used in HVAC controllers and energy monitoring systems, the I2C interface allows easy integration with building management systems.
Medical Wearables
Low power and small size enable use in wearable health monitors for continuous vital sign tracking.
Robotics
Accurate position and force sensing in robotic arms benefit from the high resolution and differential inputs.
Test & Measurement
The stable performance over temperature makes it suitable for benchtop test equipment.
- Q: What is the MCP3426A3T-E/MS?
- A: It is a 16-bit delta-sigma ADC with MUX-PGA-ADC architecture.
- Q: What is the resolution?
- A: It provides 16-bit resolution.
- Q: What is the sampling rate?
- A: The sampling rate is 15 SPS.
- Q: How many channels does it have?
- A: It has 2 differential channels.
- Q: What interface is used?
- A: It uses the I2C interface.
- Q: What is the temperature range?
- A: It operates from -40°C to 125°C.
