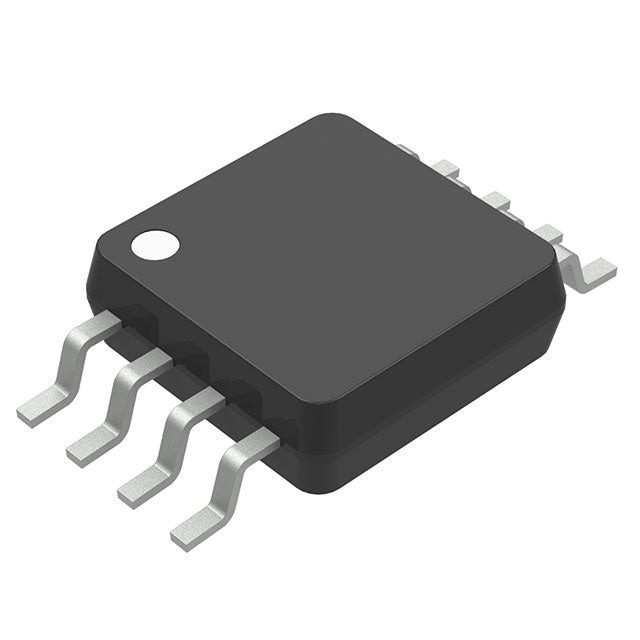

Microchip Technology MCP3426A4T-E/MS
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $10.44 | $10.44 |
| 15+ | $2.40 | $36.00 |
| 25+ | $2.35 | $58.75 |
| 50+ | $2.22 | $111.00 |
| 100+ | $1.96 | $196.00 |
| N+ | $0.39 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 15 |
| Number of Inputs | 2 |
| Input Type | Differential |
| Data Interface | I2C |
| Configuration | MUX-PGA-ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | Internal |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Features | PGA |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-MSOP |
| ROHS |  |
The MCP3426A4T-E/MS is a 16-bit delta-sigma Analog-to-Digital Converter with a built-in multiplexer and programmable gain amplifier. It features two differential input channels and an I2C interface for easy communication. With a sampling rate of 15 SPS and an internal reference, it is designed for high-precision, low-speed applications. The device operates over -40°C to 125°C and is available in a compact MSOP-8 package.
- Precision Conversion: 16-bit delta-sigma architecture for accurate measurements.
- Integrated PGA: Handles small sensor signals without external components.
- Simple I2C Interface: Reduces pin count and simplifies PCB layout.
- Low Power Operation: Extends battery life in portable devices.
- Robust Temperature Range: Suitable for industrial and automotive use.
Sensor Signal Conditioning
The internal PGA and 16-bit resolution allow direct connection to bridge sensors and thermocouples without external amplification.
Data Loggers
Low power consumption and I2C interface make it ideal for long-term data logging in remote monitoring systems.
Industrial Automation
Wide temperature range and differential inputs ensure reliable operation in factory automation and process control.
Consumer Electronics
Compact size and low cost make it suitable for smart home sensors and IoT devices.
Automotive Electronics
Operates reliably in automotive environments for battery monitoring and motor control applications.
- Q: What is the MCP3426A4T-E/MS?
- A: It is a 16-bit delta-sigma ADC with an integrated MUX-PGA-ADC architecture.
- Q: What is the resolution?
- A: The resolution is 16 bits.
- Q: What is the sampling rate?
- A: The sampling rate is 15 SPS.
- Q: How many channels are there?
- A: It has 2 differential input channels.
- Q: What interface does it use?
- A: It uses the I2C interface.
- Q: What package is it available in?
- A: It comes in an 8-TSSOP or 8-MSOP package.
