Microchip Technology MCP3427T-E/MF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $11.16 | $11.16 |
| 15+ | $2.57 | $38.55 |
| 25+ | $2.51 | $62.75 |
| 50+ | $2.37 | $118.50 |
| 100+ | $2.09 | $209.00 |
| N+ | $0.42 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 15 |
| Number of Inputs | 2 |
| Input Type | Differential |
| Data Interface | I2C |
| Configuration | MUX-PGA-ADC |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | Internal |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Features | PGA, Selectable Address |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 10-VFDFN Exposed Pad |
| Supplier Device Package | 10-DFN (3x3) |
| ROHS |  |

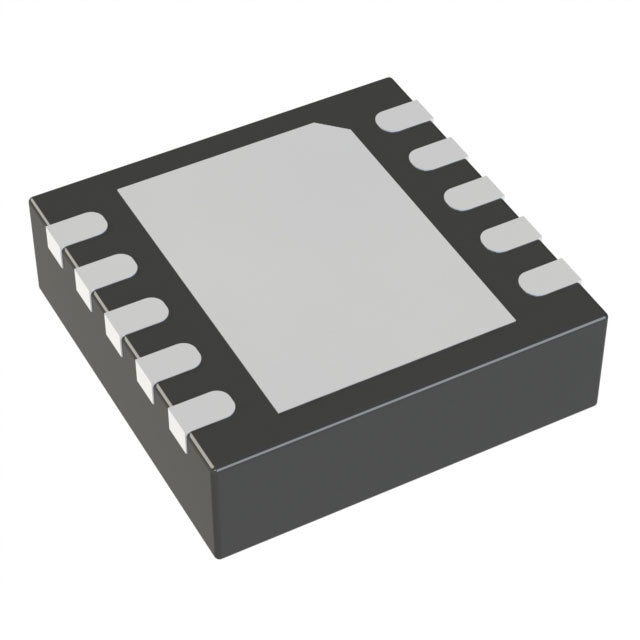

The MCP3427T-E/MF is a 16-bit analog-to-digital converter from Microchip Technology, featuring 2 input channels and an I2C interface. It integrates a multiplexer and programmable gain amplifier (MUX-PGA-ADC architecture), enabling direct connection to various sensors. With a sampling rate of 15 SPS and an internal reference, it is designed for precision measurement applications. It operates over a wide temperature range and comes in a compact 10-VFDFN package.
- Integrated PGA: The built-in programmable gain amplifier allows for direct measurement of small sensor signals, reducing external component count.
- Multi-Channel Flexibility: Two input channels enable monitoring of multiple signals with a single device.
- Simple I2C Interface: Easy integration with standard microcontrollers, simplifying system design.
- Wide Temperature Range: Reliable operation from -40°C to 125°C for demanding environments.
Multi-Sensor Data Acquisition
With 2 input channels and a built-in MUX-PGA-ADC architecture, the MCP3427T-E/MF can handle multiple sensors, providing flexibility in data acquisition systems.
Precision Measurement with Amplification
The integrated programmable gain amplifier (PGA) allows for direct connection to low-level signals, such as those from thermocouples or strain gauges, without external amplification.
Industrial Automation
The wide temperature range and I2C interface make it suitable for industrial control and monitoring systems where multiple analog signals need to be digitized accurately.
Portable Instrumentation
Its low power consumption and small 10-VFDFN package make it ideal for handheld devices and portable measurement tools.
Automotive Sensor Monitoring
The robust temperature range (-40°C to 125°C) ensures reliable performance in automotive environments for monitoring sensors like pressure and temperature.
- Q: What is the resolution of the MCP3427T-E/MF?
- A: This device is a 16-bit analog-to-digital converter (ADC).
- Q: What is the sampling rate?
- A: The sampling rate is 15 SPS (samples per second).
- Q: How many channels does it have?
- A: It features 2 input channels.
- Q: What interface does it use?
- A: It communicates via the I2C interface.
- Q: What is the architecture?
- A: It uses a MUX-PGA-ADC architecture, which includes a multiplexer and programmable gain amplifier.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 125°C.
