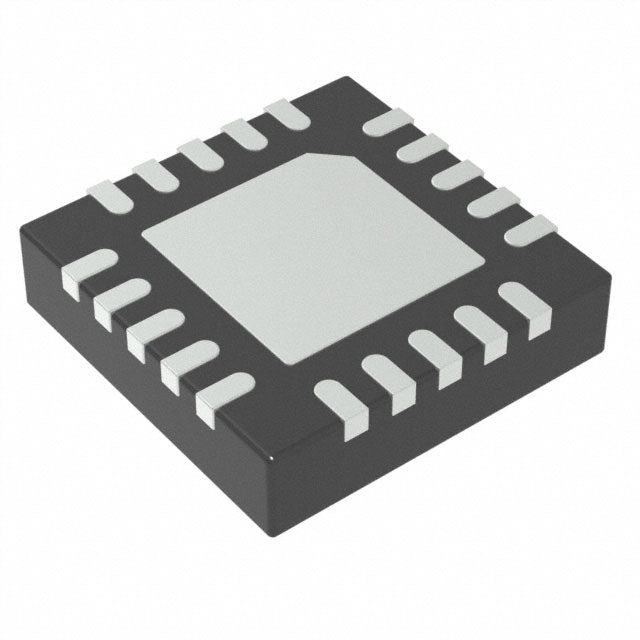

Microchip Technology MCP3461T-E/NC
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.61 | $2.61 |
| 15+ | $2.53 | $37.95 |
| 25+ | $2.48 | $62.00 |
| 50+ | $2.34 | $117.00 |
| 100+ | $2.06 | $206.00 |
| N+ | $0.41 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 153.6k |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | SPI |
| Configuration | - |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | External |
| Voltage - Supply, Analog | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | - |
| Features | Internal Oscillator, PGA, Temperature Sensor |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 20-UFQFN Exposed Pad |
| Supplier Device Package | 20-UQFN (3x3) |
| ROHS |  |
The MCP3461T-E/NC is a high-performance 16-bit analog-to-digital converter from Microchip Technology, offering a fast sampling rate of 153.6k SPS. It features a single input channel and utilizes an SPI interface for seamless digital communication. Designed for precision applications, this ADC operates over a wide temperature range and comes in a compact 20-UFQFN package, making it ideal for sensor interfaces, data acquisition systems, and industrial control.
- High Resolution: 16-bit resolution provides detailed and accurate digital representation of analog signals, essential for precision measurement.
- Fast Sampling Rate: 153.6k SPS enables capture of high-frequency signals, suitable for real-time data acquisition.
- Wide Temperature Range: Operates from -40°C to 125°C, ensuring reliability in harsh industrial and automotive environments.
- Compact Package: The 20-UFQFN Exposed Pad package saves board space, ideal for space-constrained designs.
High-Precision Sensor Digitization
The 16-bit resolution and 153.6k SPS sampling rate make the MCP3461T-E/NC ideal for digitizing signals from precision sensors like strain gauges and thermocouples, ensuring accurate representation of analog phenomena.
Portable Data Acquisition Systems
With its low-power operation and compact 20-UFQFN package, this ADC is well-suited for battery-powered data loggers and portable instrumentation where space and power efficiency are critical.
Industrial Process Control
The wide operating temperature range (-40°C to 125°C) and SPI interface allow for reliable integration into industrial automation systems for monitoring and controlling process variables with high accuracy.
Medical Instrumentation
High resolution and fast sampling enable precise measurement in medical devices such as patient monitoring systems and diagnostic equipment, where data fidelity is paramount.
Automotive Sensor Interfaces
The robust temperature range and single-channel simplicity make it suitable for automotive applications like battery management systems and motor control, requiring accurate analog signal conversion.
- Q: What is the resolution of the MCP3461T-E/NC?
- A: The MCP3461T-E/NC is a 16-bit analog-to-digital converter (ADC).
- Q: What is the maximum sampling rate?
- A: It supports a sampling rate of 153.6k SPS (samples per second).
- Q: How many input channels does it have?
- A: This ADC features a single (1) input channel.
- Q: What digital interface does it use?
- A: It communicates via the SPI (Serial Peripheral Interface).
- Q: What is the operating temperature range?
- A: The device operates over a temperature range of -40°C to 125°C.
- Q: What package is available?
- A: It comes in a 20-UFQFN Exposed Pad package.
