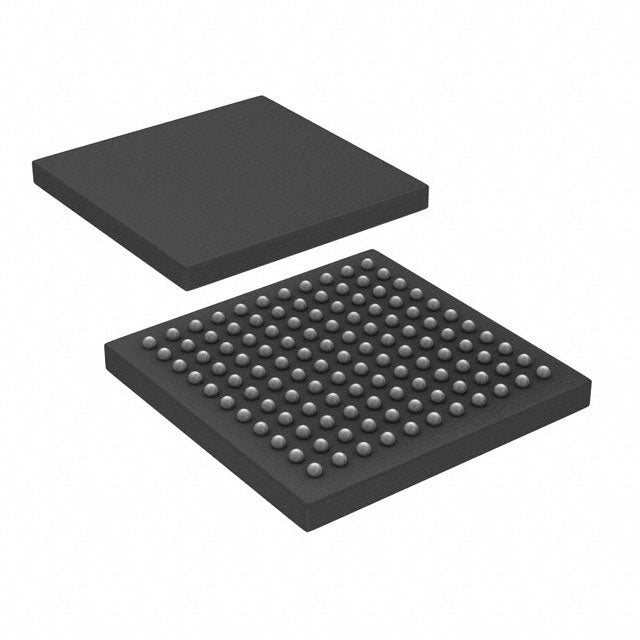

Microchip Technology MCP37211-200E/TE
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $27.85 | $27.85 |
| 15+ | $26.97 | $404.55 |
| 25+ | $26.39 | $659.75 |
| 50+ | $24.92 | $1,246.00 |
| 100+ | $21.99 | $2,199.00 |
| N+ | $4.40 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Tray | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 200M |
| Number of Inputs | 1, 2, 4, 8 |
| Input Type | Differential |
| Data Interface | LVDS - Parallel, Parallel |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Pipelined |
| Reference Type | Internal |
| Voltage - Supply, Analog | 1.14V ~ 1.89V |
| Voltage - Supply, Digital | 1.14V ~ 1.89V |
| Features | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 121-TFBGA |
| Supplier Device Package | 121-TFBGA (8x8) |
| ROHS |  |
The MCP37211-200E/TE is a high-speed, 12-bit analog-to-digital converter from Microchip Technology, designed for ultra-fast signal digitization. It features a flexible input multiplexer supporting 1, 2, 4, or 8 channels, and a sample-and-hold circuit for accurate conversion. With a maximum sampling rate of 200M SPS, it is one of the fastest ADCs in its class. The device offers both LVDS and parallel output interfaces for versatile system integration. It includes an internal reference and operates over a wide -40°C to +125°C temperature range. Packaged in a 121-TFBGA, it is ideal for radar, communications, and high-end test equipment.
- Ultra-High Speed: 200M SPS sampling rate enables digitization of very fast signals, critical for radar and SDR applications.
- Channel Flexibility: Configurable 1, 2, 4, or 8 channels via MUX allows adaptation to various system architectures.
- Dual Interface Options: LVDS and parallel outputs provide design flexibility for high-speed data transfer.
- Wide Temperature Range: Operation from -40°C to +125°C ensures reliability in extreme environments.
- Integrated Reference: Internal reference simplifies design and reduces external component count.
High-Performance Radar Systems
The 200M SPS sampling rate and 12-bit resolution make the MCP37211-200E/TE ideal for radar signal processing, enabling precise detection and ranging in defense and automotive radar.
Software-Defined Radio (SDR)
In SDR platforms, this ADC can digitize wideband RF signals directly, allowing for flexible and reconfigurable communication systems.
Medical Imaging (Ultrasound)
The high speed and multi-channel capability support advanced ultrasound systems, providing high-resolution images for accurate diagnosis.
High-Speed Data Acquisition
For test and measurement equipment like oscilloscopes and logic analyzers, this ADC offers the speed and channel flexibility needed to capture complex waveforms.
Communications Infrastructure
In 5G base stations and microwave links, the MCP37211 can digitize IF signals with high fidelity, improving signal quality and system performance.
- Q: What type of ADC is the MCP37211-200E/TE?
- A: It is a 12-bit, high-speed analog-to-digital converter with a multiplexer and sample-and-hold (MUX-S/H) architecture.
- Q: What is the resolution of the MCP37211-200E/TE?
- A: It provides 12-bit resolution, suitable for high-speed, moderate-precision applications.
- Q: What is the maximum sampling rate?
- A: It supports a very high sampling rate of 200M SPS (200 MSPS).
- Q: How many channels does it have?
- A: It features configurable input channels: 1, 2, 4, or 8, selectable via the internal multiplexer.
- Q: What interfaces are available?
- A: It offers both LVDS (parallel) and standard parallel digital output interfaces.
- Q: What is the package type?
- A: It is available in a 121-TFBGA package.
