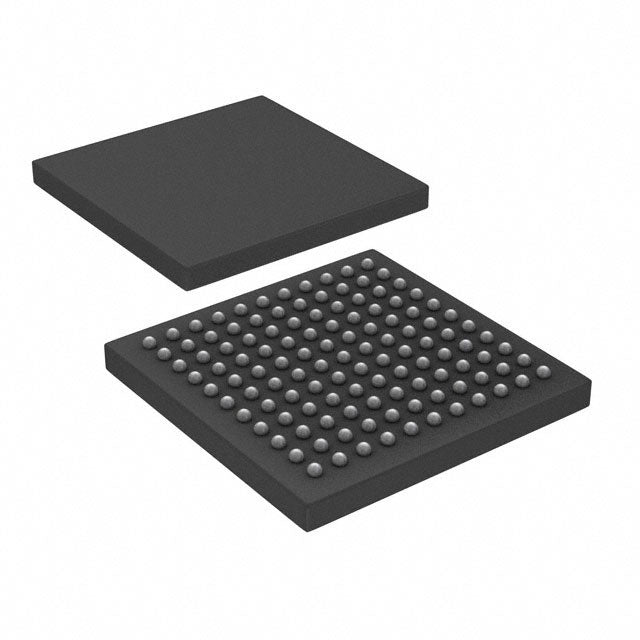

Microchip Technology MCP37D31-80E/TE
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $41.65 | $41.65 |
| 15+ | $40.33 | $604.95 |
| 25+ | $39.46 | $986.50 |
| 50+ | $37.26 | $1,863.00 |
| 100+ | $32.88 | $3,288.00 |
| N+ | $6.58 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Tray | |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 80M |
| Number of Inputs | 8 |
| Input Type | Differential |
| Data Interface | LVDS - Parallel, SPI |
| Configuration | MUX-S/H-MUX-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Pipelined |
| Reference Type | Internal |
| Voltage - Supply, Analog | 1.2V ~ 1.8V |
| Voltage - Supply, Digital | 1.2V ~ 1.8V |
| Features | Digital Down-Converter, Decimation Filters |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Grade | - |
| Qualification | - |
| Package / Case | 121-TFBGA |
| Supplier Device Package | 121-TFBGA (8x8) |
| ROHS |  |
The MCP37D31-80E/TE from Microchip Technology is a high-performance 16-bit Analog-to-Digital Converter with an impressive sampling rate of 80 MSPS. Featuring 8 channels and a MUX-S/H-MUX-ADC architecture, it delivers exceptional precision for multi-channel applications. It supports both LVDS - Parallel and SPI interfaces for flexible system integration. With an internal reference and a wide temperature range of -40°C to 125°C, this ADC is ideal for radar, medical imaging, and industrial IoT applications.
- High Resolution: 16-bit resolution provides excellent signal fidelity for precision measurements.
- Multi-Channel Design: 8 channels enable simultaneous sampling of multiple signals.
- Flexible Interfaces: LVDS - Parallel and SPI options offer design versatility.
- Wide Temperature Range: -40°C to 125°C ensures operation in extreme environments.
High-Resolution Data Acquisition
The 16-bit resolution and 80 MSPS sampling rate make this ADC ideal for high-precision data acquisition systems in scientific and industrial applications.
Advanced Radar Systems
With 8 channels and high-speed LVDS interface, it is well-suited for phased-array radar and electronic warfare systems.
Medical Ultrasound
The high resolution and multi-channel capability enable detailed imaging in advanced medical ultrasound equipment.
Industrial IoT Sensors
Its wide temperature range of -40°C to 125°C makes it suitable for industrial IoT sensor nodes in harsh environments.
High-Performance Test Equipment
The combination of high resolution, speed, and multiple interfaces makes it perfect for benchtop and production test equipment.
- Q: What is the resolution of the MCP37D31-80E/TE?
- A: It is a 16-bit Analog-to-Digital Converter.
- Q: What is the sampling rate?
- A: The sampling rate is 80 MSPS (80 million samples per second).
- Q: How many channels does it have?
- A: It has 8 channels.
- Q: What interfaces are supported?
- A: It supports LVDS - Parallel and SPI interfaces.
- Q: What is the architecture?
- A: It uses a MUX-S/H-MUX-ADC architecture.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 125°C.
