Microchip Technology MCP73114-1NSI/MF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.43 | $1.43 |
| 15+ | $1.39 | $20.85 |
| 25+ | $1.36 | $34.00 |
| 50+ | $1.28 | $64.00 |
| 100+ | $1.13 | $113.00 |
| N+ | $0.23 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Tube | |
| Battery Chemistry | Lithium Ion/Polymer |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | - |
| Fault Protection | Over Voltage |
| Charge Current - Max | 1.1A |
| Battery Pack Voltage | 4.1V |
| Voltage - Supply (Max) | 6.5V |
| Interface | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

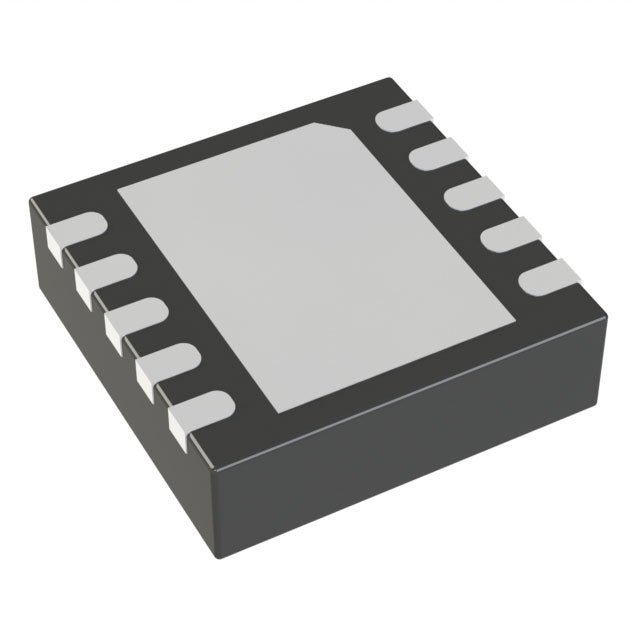

| Package / Case | 10-VFDFN Exposed Pad |
| Supplier Device Package | 10-DFN (3x3) |
| ROHS |  |
MCP73114-1NSI/MF - Single-Cell Lithium-Ion Battery Charger IC
The MCP73114-1NSI/MF from Microchip Technology is a highly integrated linear charge management controller designed for single-cell lithium-ion and lithium-polymer battery applications. This advanced battery charger IC delivers reliable, constant-current programmable charging with a maximum charge current of 1.1A, making it ideal for portable electronics, industrial equipment, and embedded systems requiring efficient power management.
Key Features & Benefits
- Single-Cell Li-Ion/Polymer Charging: Optimized for 4.1V battery pack voltage with precision voltage regulation
- Programmable Constant Current: Flexible charging current up to 1.1A for various battery capacities
- Over-Voltage Protection: Built-in fault protection ensures safe charging operation
- Wide Input Range: Accepts supply voltages up to 6.5V for versatile power source compatibility
- Compact Surface Mount Package: Space-saving 10-DFN (3x3mm) footprint with exposed pad for enhanced thermal performance
- Extended Temperature Range: Operates reliably from -40°C to 85°C for demanding industrial environments
Applications
This battery charger IC is perfectly suited for:
- Portable consumer electronics and handheld devices
- Industrial monitoring and control equipment
- Medical instrumentation requiring reliable battery management
- IoT devices and wireless sensor networks
- Embedded systems with single-cell Li-Ion power sources
Quality & Compliance
The MCP73114-1NSI/MF is RoHS compliant, ensuring environmentally responsible manufacturing. Microchip Technology's rigorous quality standards guarantee consistent performance and long-term reliability for your critical applications.
