Microchip Technology MCP73213T-G6XI/MF
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.29 | $2.29 |
| 15+ | $2.22 | $33.30 |
| 25+ | $2.17 | $54.25 |
| 50+ | $2.05 | $102.50 |
| 100+ | $1.81 | $181.00 |
| N+ | $0.36 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Battery Chemistry | Lithium Ion/Polymer |
| Number of Cells | 2 |
| Current - Charging | Constant - Programmable |
| Programmable Features | - |
| Fault Protection | Over Voltage |
| Charge Current - Max | 1.1A |
| Battery Pack Voltage | 8.8V |
| Voltage - Supply (Max) | 13V |
| Interface | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

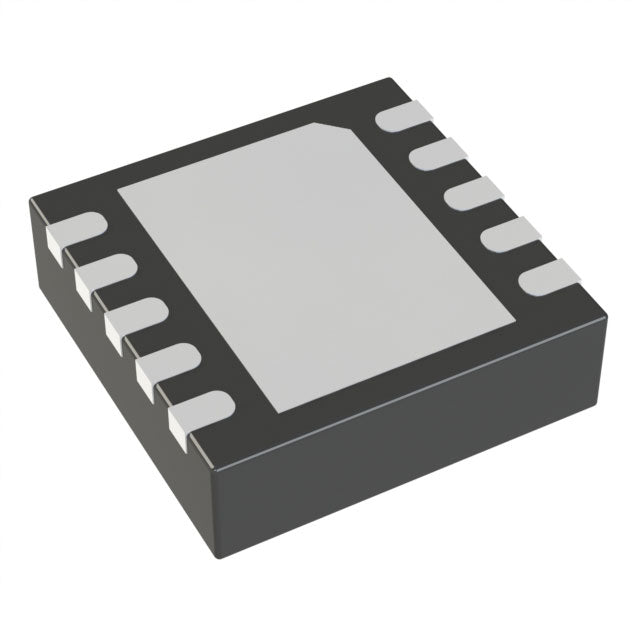

| Package / Case | 10-VFDFN Exposed Pad |
| Supplier Device Package | 10-DFN (3x3) |
| ROHS |  |
The MCP73213T-G6XI/MF is a linear charge management controller from Microchip Technology, specifically designed for 2-cell Lithium Ion/Polymer battery packs. It delivers a programmable charge current up to 1.1A and regulates the battery voltage to 8.8V. Housed in a compact 10-VFDFN package with an exposed pad, this device operates reliably across a wide temperature range from -40°C to 85°C. Its integrated over-voltage protection ensures safe charging, making it suitable for industrial, medical, and portable applications requiring dependable battery management.
- Wide Temperature Operation: Rated from -40°C to 85°C, enabling use in industrial and outdoor applications without performance degradation.
- Precise Voltage Regulation: Maintains a tight 8.8V output for 2-cell Li-Po packs, maximizing battery capacity and cycle life.
- Compact Footprint: The 10-VFDFN package with exposed pad allows for efficient heat dissipation and space-saving PCB layouts.
- Integrated Safety: Built-in over-voltage protection prevents damage from charging faults, enhancing system reliability.
Two-Cell Li-Ion Battery Packs
Ideal for charging 2-cell Lithium Ion/Polymer battery packs with a constant 1.1A current and an 8.8V target voltage, ensuring reliable and safe charging cycles.
Industrial Portable Equipment
With an operating temperature range of -40°C to 85°C, this charger is suitable for industrial handheld devices, diagnostic tools, and field instruments that operate in harsh environments.
Medical Devices
The precise 8.8V regulation and over-voltage protection make it a dependable choice for portable medical monitoring equipment where battery safety and longevity are critical.
IoT and Remote Sensors
For remote IoT nodes powered by 2-cell Li-Po batteries, this charger provides a compact, efficient charging solution in a 10-VFDFN package, ideal for space-constrained PCB designs.
Backup Power Systems
Used in small-scale backup power units, the MCP73213T-G6XI/MF ensures the 2-cell battery bank is maintained at the correct voltage without risk of overcharging.
- Q: What battery chemistry does the MCP73213T-G6XI/MF support?
- A: It is designed for Lithium Ion/Polymer batteries.
- Q: How many battery cells can this charger handle?
- A: It supports 2 series cells.
- Q: What is the maximum charge current?
- A: The maximum charge current is 1.1A.
- Q: What is the battery pack voltage?
- A: The battery pack voltage is 8.8V.
- Q: What fault protection is included?
- A: It includes Over Voltage protection.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 85°C (TA).
MCP73213T-G6XI/MF.pdf
