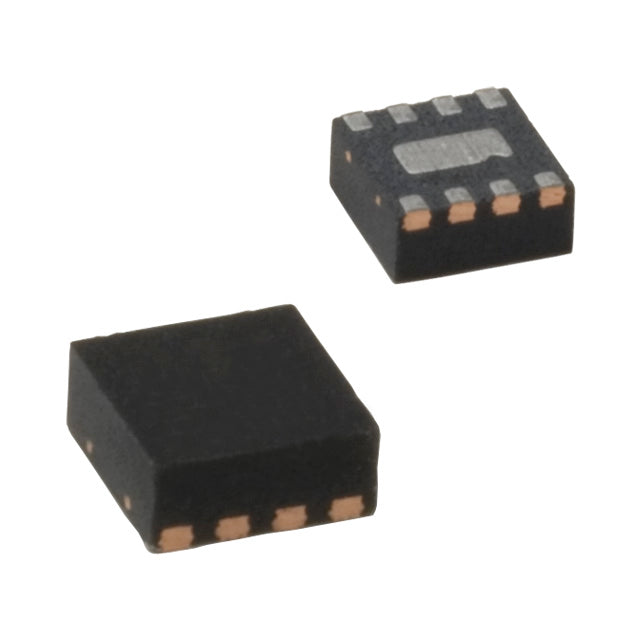

Microchip Technology MIC2296YML-TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.29 | $1.29 |
| 15+ | $1.25 | $18.75 |
| 25+ | $1.22 | $30.50 |
| 50+ | $1.16 | $58.00 |
| 100+ | $1.02 | $102.00 |
| N+ | $0.20 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Function | Step-Up |
| Output Configuration | Positive |
| Topology | Boost |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.5V |
| Voltage - Input (Max) | 10V |
| Voltage - Output (Min/Fixed) | 2.5V |
| Voltage - Output (Max) | 34V (Switch) |
| Current - Output | 1.2A (Switch) |
| Frequency - Switching | 600kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-VFDFN Exposed Pad, 8-MLF® |
| Supplier Device Package | 8-MLF® (2x2) |
| ROHS |  |
The MIC2296YML-TR from Microchip Technology is a high-frequency step-up (boost) switching regulator. It operates from an input voltage of 2.5V to 10V and can produce an output voltage up to 34V (limited by the 1.2A switch). With a 600kHz switching frequency, it enables the use of small, low-profile inductors and capacitors. The compact 8-MLF package is ideal for space-constrained portable and battery-powered applications.
- High Output Voltage (up to 34V): Enables driving OLEDs, LEDs, and high-voltage sensors from low-voltage sources.
- 600kHz Switching Frequency: Allows for tiny external components, reducing PCB area and overall solution size.
- Wide Input Range (2.5V-10V): Compatible with single-cell Li-ion, alkaline, and multi-cell battery configurations.
- Compact 8-MLF Package: Ideal for space-limited portable and wearable devices.
OLED and LCD Display Bias
Generate high-voltage bias rails (up to 34V) for OLED panels and LCD backlight drivers from a 2.5V-5V battery supply, enabling slim portable devices.
Portable Battery-Powered Devices
Boost a single-cell Li-ion battery (3.0V-4.2V) to 5V or 12V for USB OTG, portable speakers, and handheld instruments, maximizing battery utilization.
White LED Flash Drivers
Drive high-brightness white LEDs in camera flash units or torches, with the 600kHz frequency allowing small inductors for compact designs.
Industrial Sensor Interfaces
Provide a higher voltage rail (e.g., 12V or 24V) for industrial sensors and transmitters from a low-voltage logic supply (3.3V or 5V).
Medical and Wearable Devices
Power insulin pumps, hearing aids, and wearable health monitors that require a high-voltage bias from a tiny coin cell or small Li-ion battery.
Networking and PoE Powered Devices
Boost a 5V input to 12V or 24V for small networking equipment, such as Wi-Fi routers or IP cameras, powered from a USB or PoE source.
- Q: What type of converter is the MIC2296YML-TR?
- A: It is a step-up (Boost) DC-DC converter IC.
- Q: What is the input voltage range?
- A: The input voltage range is 2.5V to 10V.
- Q: What is the output voltage range?
- A: The output can be set from 2.5V up to 34V (switch voltage limit).
- Q: What is the maximum switch current?
- A: The internal switch is rated for a maximum of 1.2A.
- Q: What is the switching frequency?
- A: The switching frequency is 600kHz.
- Q: What package is available?
- A: It is available in an 8-VFDFN exposed pad package (8-MLF).
