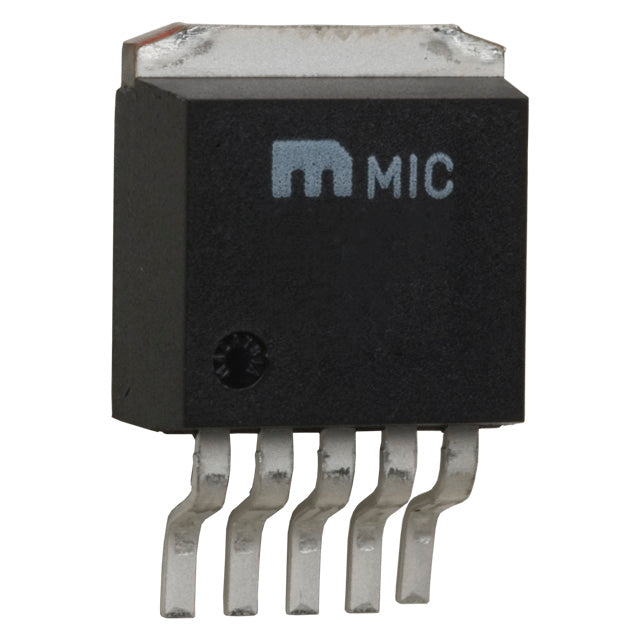

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Regular price $5.22
Regular price $5.49 Sale price $5.22
Sale Sold out
Quantity Unit Price Total Price
1 $5.22 $5.22
15+ $5.05 $75.75
25+ $4.94 $123.50
50+ $4.67 $233.50
100+ $4.12 $412.00
N+ $0.82 Price Inquiry
Shipping calculated at checkout.
Quantity
Component Recycling

Request Quote / Inquiry

Product attributes Property Value
Manufacturer Microchip Technology
Product Series
Packaging Tube |
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage - Input (Max) 26V
Voltage - Output (Min/Fixed) 12V
Voltage - Output (Max) -
Voltage Dropout (Max) 0.75V @ 400mA
Current - Output 400mA
Current - Quiescent (Iq) 300 µA
Current - Supply (Max) 12 mA
PSRR -
Control Features Enable
Protection Features Load Dump, Over Current, Reverse Polarity
Operating Temperature -40°C ~ 125°C
Grade -
Qualification -
Mounting Type Surface Mount
Package / Case TO-263-6, D2PAK (5 Leads + Tab), TO-263BA
Supplier Device Package TO-263-5
ROHS RoHS Compliant - Hazardous Substance Free Electronic Components | HQICKEY

The MIC29201-12WU from Microchip Technology is a fixed 12V low-dropout regulator delivering 400mA. Its 0.75V dropout and 300 µA quiescent current make it suitable for automotive and industrial applications where efficiency and reliability are critical. The TO-263-5 package provides excellent thermal performance for surface-mount designs.

  • Low Quiescent Current: 300 µA quiescent current reduces power consumption in standby systems.
  • Low Dropout: 0.75V dropout at 400mA ensures regulation even with marginal input voltage.
  • Surface-Mount Package: TO-263-5 (D2PAK) enables automated assembly and good heat sinking.
  • Wide Input Range: Handles input voltages up to 26V, suitable for automotive environments.

Automotive Sensor Power

Provides a stable 12V rail for automotive sensors and actuators, with wide input tolerance for battery voltage variations.

Industrial Relay Drivers

Powers relay coils and solenoid drivers in industrial control panels, delivering 400mA with low dropout.

Telecom Line Cards

Regulates 12V for line interface circuits in telecom equipment, ensuring reliable communication.

LED Strip Lighting

Supplies 12V to LED strip lighting controllers, benefiting from low quiescent current in standby mode.

Battery Charger Circuits

Provides a regulated 12V reference for battery charger controllers in power tools.

HVAC Control Systems

Powers 12V logic and valve drivers in HVAC systems, with TO-263-5 package for heat dissipation.

Q: What is the output voltage of the MIC29201-12WU?
A: The fixed output voltage is 12V.
Q: What is the maximum output current?
A: It can provide up to 400mA of output current.
Q: What is the input voltage range?
A: The input voltage must be above 12.75V, typically up to 26V.
Q: What is the dropout voltage?
A: The dropout voltage is typically 0.75V at 400mA load.
Q: What is the quiescent current?
A: The quiescent current is 300 µA, making it efficient for always-on applications.
Q: What package is available?
A: It comes in a TO-263-5 (D2PAK) surface-mount package for excellent thermal performance.
Base Product Number : MIC29201-12
12V 400mA Automotive LDO Linear Regulator Low Quiescent Microchip TO-263-5
