Microchip Technology MIC29201-3.3WT

Skip to product information
1 of 1

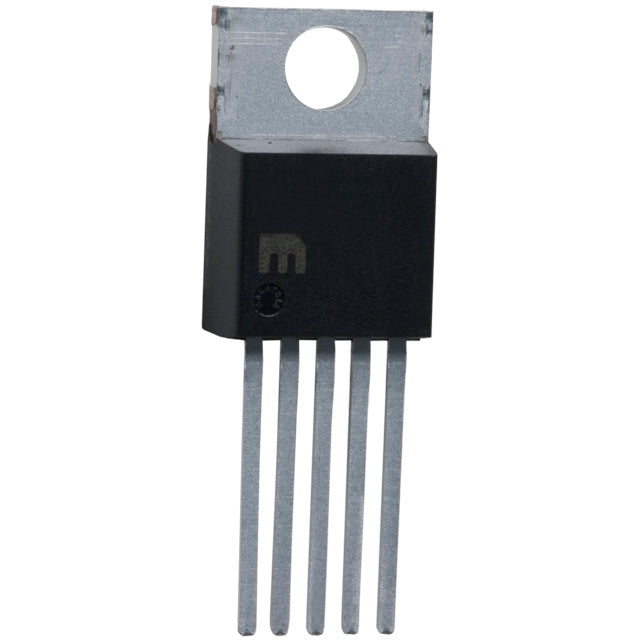

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Regular price $3.95
Regular price $4.16 Sale price $3.95
Sale Sold out
Quantity Unit Price Total Price
1 $3.95 $3.95
15+ $3.83 $57.45
25+ $3.74 $93.50
50+ $3.54 $177.00
100+ $3.12 $312.00
N+ $0.62 Price Inquiry
Shipping calculated at checkout.
Quantity
Component Recycling

Request Quote / Inquiry

Product attributes Property Value
Manufacturer Microchip Technology
Product Series
Packaging Tube |
Output Configuration Active
Output Type Positive
Number of Regulators Fixed
Voltage - Input (Max) 26V
Voltage - Output (Min/Fixed) 3.3V
Voltage - Output (Max) -
Voltage Dropout (Max) 0.75V @ 400mA
Current - Output 400mA
Current - Quiescent (Iq) 300 μA
Current - Supply (Max) 12 mA
PSRR -
Control Features Enable
Protection Features Load Dump, Over Current, Reverse Polarity
Operating Temperature -40°C ~ 125°C
Grade -
Qualification -
Mounting Type Through Hole
Package / Case TO-220-5
Supplier Device Package TO-220-5
ROHS RoHS Compliant - Hazardous Substance Free Electronic Components | HQICKEY

The MIC29201-3.3WT is a fixed 3.3V low dropout linear regulator from Microchip Technology, capable of delivering 400mA. With a dropout voltage of just 0.75V at full load and a low quiescent current of 300µA, it is well-suited for battery-operated and power-sensitive applications. The TO-220-5 package ensures efficient heat dissipation for reliable operation.

  • Low Dropout Voltage (0.75V @ 400mA): Maximizes efficiency by allowing operation with minimal headroom, extending battery life.
  • Low Quiescent Current (300µA): Reduces standby power consumption, ideal for battery-powered and always-on devices.
  • Fixed 3.3V Output: Simplifies design by eliminating the need for external resistors, reducing component count.
  • TO-220-5 Package: Provides excellent thermal performance for reliable operation in demanding environments.

Microcontroller Power Supply

Provides a stable 3.3V rail for MCUs and digital logic, with 400mA capacity sufficient for most control applications. The low 300µA quiescent current helps maintain efficiency in always-on systems.

Battery-Powered Devices

Ideal for portable instruments where low dropout (0.75V) extends usable battery life. The low quiescent current minimizes drain during standby, preserving battery capacity.

Sensor Interface Boards

Delivers clean 3.3V to analog sensors and signal conditioning circuits. The low output noise and stable regulation improve measurement accuracy.

Automotive Electronics

Suitable for automotive modules requiring a regulated 3.3V supply from a 5V or 12V bus. The TO-220 package allows for heatsinking in high-temperature environments.

Industrial Control Systems

Powers PLC I/O modules and industrial sensors. The robust TO-220-5 package and 400mA output handle moderate loads with reliable thermal performance.

Communication Modules

Provides clean power to RF transceivers and wireless modules, reducing voltage ripple that could affect signal integrity.

Q: What is the output voltage of the MIC29201-3.3WT?
A: The fixed output voltage is 3.3V.
Q: What is the maximum output current?
A: It can deliver up to 400mA of continuous current.
Q: What is the input voltage range?
A: The input voltage range is not specified in the provided data; refer to the datasheet for full specifications.
Q: What is the dropout voltage?
A: The dropout voltage is 0.75V at 400mA load.
Q: What is the quiescent current?
A: The quiescent current is 300 µA.
Q: What package is available?
A: It comes in a TO-220-5 package.
Base Product Number : MIC29201-3.3
3.3V 400mA Fixed Output LDO Linear Regulator Low Dropout Microchip TO-220-5
