Microchip Technology MIC29201-4.8WT

Skip to product information
1 of 1

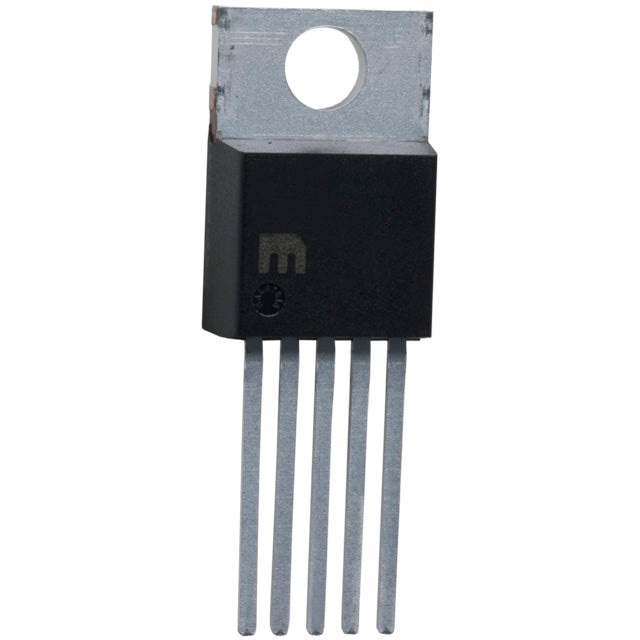

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Regular price $16.64
Regular price $4.16 Sale price $16.64
Sale Sold out
Quantity Unit Price Total Price
1 $16.64 $16.64
15+ $3.83 $57.45
25+ $3.74 $93.50
50+ $3.54 $177.00
100+ $3.12 $312.00
N+ $0.62 Price Inquiry
Shipping calculated at checkout.
Quantity
Component Recycling

Request Quote / Inquiry

Product attributes Property Value
Manufacturer Microchip Technology
Product Series
Packaging Tube |
Output Configuration Active
Output Type Positive
Number of Regulators Fixed
Voltage - Input (Max) 26V
Voltage - Output (Min/Fixed) 4.85V
Voltage - Output (Max) -
Voltage Dropout (Max) 0.75V @ 400mA
Current - Output 400mA
Current - Quiescent (Iq) 300 μA
Current - Supply (Max) 12 mA
PSRR -
Control Features Enable
Protection Features Load Dump, Over Current, Reverse Polarity
Operating Temperature -40°C ~ 125°C
Grade -
Qualification -
Mounting Type Through Hole
Package / Case TO-220-5
Supplier Device Package TO-220-5
ROHS RoHS Compliant - Hazardous Substance Free Electronic Components | HQICKEY

The MIC29201-4.8WT from Microchip Technology is a fixed 4.85V linear regulator capable of delivering 400mA. With a low dropout voltage of 0.75V at full load, it efficiently regulates from inputs as low as 5.6V. The 300 µA quiescent current helps conserve power in always-on applications. Housed in a robust TO-220-5 package, it offers excellent thermal performance for industrial, automotive, and consumer applications.

  • Fixed 4.85V Output: Ideal for 5V logic without external resistor dividers.
  • Low Dropout (0.75V): Maintains regulation with minimal input-to-output headroom.
  • 400mA Output Current: Suitable for a wide range of moderate-power loads.
  • TO-220 Package: Easy to heatsink and handle in through-hole PCB designs.
  • Low Quiescent Current: 300 µA reduces standby power consumption.

5V Logic and Microcontroller Power

The 4.85V output is ideal for powering 5V logic families and microcontrollers, providing a stable rail with low dropout from a 5.6V or higher supply.

Automotive Sensor Power

With a 26V input tolerance, this LDO regulates vehicle battery voltage down to 4.85V for sensors, ensuring consistent performance despite load dumps.

Battery-Powered Handheld Instruments

The 400mA output and low dropout make it suitable for powering 5V circuits from a 6V or 9V battery, maximizing usable battery capacity.

Industrial Control Systems

For PLCs and industrial controllers, this regulator provides a clean 4.85V rail for analog-to-digital converters and interface ICs, reducing noise.

Audio and Video Equipment

In consumer electronics, it supplies a stable 4.85V to audio codecs and video processors, improving signal quality by minimizing supply ripple.

Prototyping and Hobby Projects

The TO-220 package is easy to use on breadboards, making it a reliable choice for hobbyists building 5V projects from higher-voltage supplies.

Q: What is the fixed output voltage of the MIC29201-4.8WT?
A: This version provides a fixed 4.85V output.
Q: What is the maximum output current?
A: The regulator can supply up to 400mA of continuous current.
Q: What is the input voltage range?
A: The input voltage range is from 4.85V up to 26V (absolute maximum), with typical operation above 5.6V for regulation.
Q: What is the dropout voltage?
A: Dropout voltage is typically 0.75V at 400mA load, allowing operation with a 5.6V input for a 4.85V output.
Q: What is the quiescent current?
A: The quiescent current is 300 µA, which is moderate for a fixed-output regulator.
Q: What package is available?
A: The MIC29201-4.8WT comes in a TO-220-5 package, suitable for through-hole mounting and heatsinking.
Base Product Number : MIC29201
400mA Fixed 4.85V LDO Linear Regulator Low Dropout MIC29201 Microchip TO-220-5
