Microchip Technology MIC29201-5.0WU-TR

Skip to product information
1 of 1

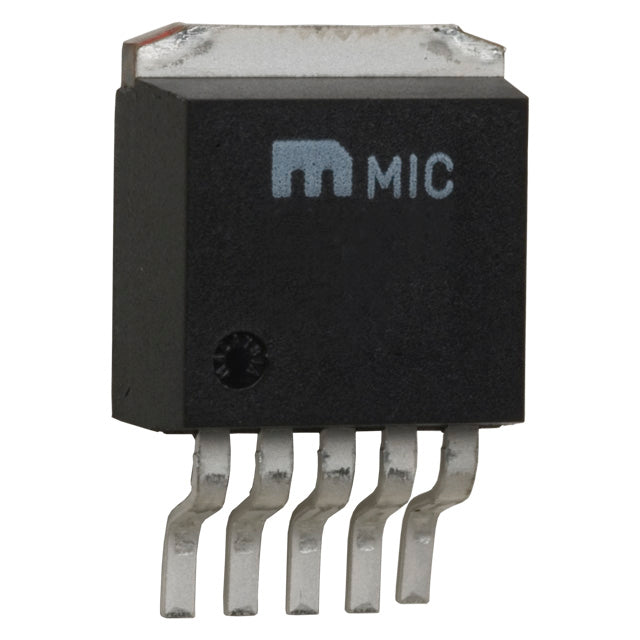

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Regular price $2.87
Regular price $3.02 Sale price $2.87
Sale Sold out
Quantity Unit Price Total Price
1 $2.87 $2.87
15+ $2.78 $41.70
25+ $2.72 $68.00
50+ $2.57 $128.50
100+ $2.27 $227.00
N+ $0.45 Price Inquiry
Shipping calculated at checkout.
Quantity
Component Recycling

Request Quote / Inquiry

Product attributes Property Value
Manufacturer Microchip Technology
Product Series
Packaging Cut Tape (CT) | Tape & Reel (TR)
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage - Input (Max) 26V
Voltage - Output (Min/Fixed) 5V
Voltage - Output (Max) -
Voltage Dropout (Max) 0.75V @ 400mA
Current - Output 400mA
Current - Quiescent (Iq) 300 µA
Current - Supply (Max) 12 mA
PSRR -
Control Features Enable
Protection Features Load Dump, Over Current, Reverse Polarity
Operating Temperature -40°C ~ 125°C
Grade -
Qualification -
Mounting Type Surface Mount
Package / Case TO-263-6, D2PAK (5 Leads + Tab), TO-263BA
Supplier Device Package TO-263-5
ROHS RoHS Compliant - Hazardous Substance Free Electronic Components | HQICKEY

The Microchip Technology MIC29201-5.0WU-TR is a fixed 5.0V, 400mA low-dropout linear regulator in a TO-263-5 package. It offers a low quiescent current of 300µA and a dropout voltage of 0.75V at full load. This regulator provides a simple, efficient solution for 5V applications.

  • Low Power Standby: The 300µA quiescent current reduces idle power consumption in battery-operated devices.
  • Low Dropout: The 0.75V dropout at 400mA allows operation from a 5.75V input, improving efficiency.
  • Compact Power Solution: The TO-263-5 package offers good thermal performance in a small footprint.
  • Stable 5V Output: Provides a fixed, accurate 5V rail without external resistor dividers.

5V Logic and Peripheral Power

The fixed 5V output and 400mA capability are well-suited for powering legacy 5V logic, sensors, and small peripherals.

Battery-Powered Backup Systems

With a low 300µA quiescent current, it is ideal for always-on backup circuits in alarms and telemetry systems.

Post-Regulation for 5V Rails

It can clean up noisy 5V rails from switching regulators, providing a stable supply for analog circuits.

Industrial Process Controllers

Provides a reliable 5V supply for microcontrollers, op-amps, and interface transceivers in industrial control panels.

Consumer Electronics

Suitable for set-top boxes, gaming peripherals, and other consumer devices requiring a low-noise 5V rail.

Q: What is the output voltage of the MIC29201-5.0WU-TR?
A: The fixed output voltage is 5.0V.
Q: What is the maximum output current?
A: It can deliver up to 400mA of output current.
Q: What is the input voltage range?
A: The input voltage range is not specified in the provided data; refer to the datasheet.
Q: What is the dropout voltage?
A: The dropout voltage is 0.75V at 400mA.
Q: What is the quiescent current?
A: The quiescent current is 300 µA.
Q: What package is available?
A: It is available in a TO-263-5 package.
Base Product Number : MIC29201-5.0WU
400mA 5V LDO Linear Regulator Low Quiescent Current MIC29201 TO-263-5
