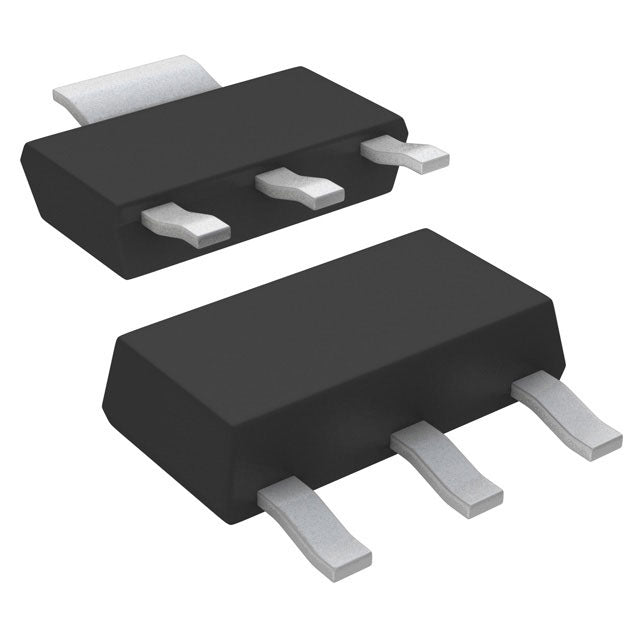

Microchip Technology MIC2920A-12WS
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.69 | $1.69 |
| 15+ | $1.64 | $24.60 |
| 25+ | $1.60 | $40.00 |
| 50+ | $1.51 | $75.50 |
| 100+ | $1.34 | $134.00 |
| N+ | $0.27 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Tube | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 26V |
| Voltage - Output (Min/Fixed) | 12V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.75V @ 400mA |
| Current - Output | 400mA |
| Current - Quiescent (Iq) | 300 µA |
| Current - Supply (Max) | 12 mA |
| PSRR | - |
| Control Features | - |
| Protection Features | Load Dump, Over Current, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-261-4, TO-261AA |
| Supplier Device Package | SOT-223-3 |
| ROHS |  |
The MIC2920A-12WS from Microchip Technology is a fixed 12V low-dropout linear regulator capable of delivering 400mA. With a dropout voltage of 0.75V at full load, it efficiently regulates from 24V industrial rails or 13.8V automotive supplies. The SOT-223-3 package offers reliable thermal performance. Its 300µA quiescent current makes it suitable for always-on applications. This regulator is a robust choice for industrial, automotive, and telecom systems requiring a stable 12V output.
- Wide Input Compatibility: Handles up to 26V, ideal for 24V industrial and automotive systems.
- Low Dropout: 0.75V at 400mA maximizes efficiency with minimal headroom.
- Reliable Package: SOT-223-3 provides good heat dissipation for continuous loads.
- Moderate Quiescent Current: 300µA balances performance and standby power.
Industrial 24V to 12V Conversion
With 0.75V dropout, this regulator efficiently steps down 24V industrial buses to 12V for sensors and actuators, supporting 400mA loads.
Automotive Aftermarket Electronics
Operates from 12V battery systems (up to 26V during load dump) to provide a stable 12V rail for dashcams and GPS trackers.
HVAC Control Boards
Powers relays and microcontrollers in thermostats, with 300µA quiescent current for standby efficiency.
Telecom Line Cards
Provides a clean 12V bias for op-amps and line drivers in communication equipment, with low dropout from 13.8V supplies.
Battery Charger Reference
Used as a precision 12V reference for charging circuits in lead-acid battery management systems.
LED Strip Lighting
Regulates 24V input down to 12V for LED strips, with 400mA supporting up to 4.8W of lighting.
- Q: What is the output voltage?
- A: The MIC2920A-12WS provides a fixed 12V output.
- Q: What is the maximum output current?
- A: It can deliver up to 400mA of output current.
- Q: What is the input voltage range?
- A: The input voltage range is from 14V to 26V, suitable for 24V industrial rails.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.75V at 400mA, allowing operation from a 13.8V supply.
- Q: What is the quiescent current?
- A: The quiescent current is 300µA, moderate for a 12V regulator.
- Q: What package is available?
- A: It comes in a SOT-223-3 package, providing good thermal performance.
