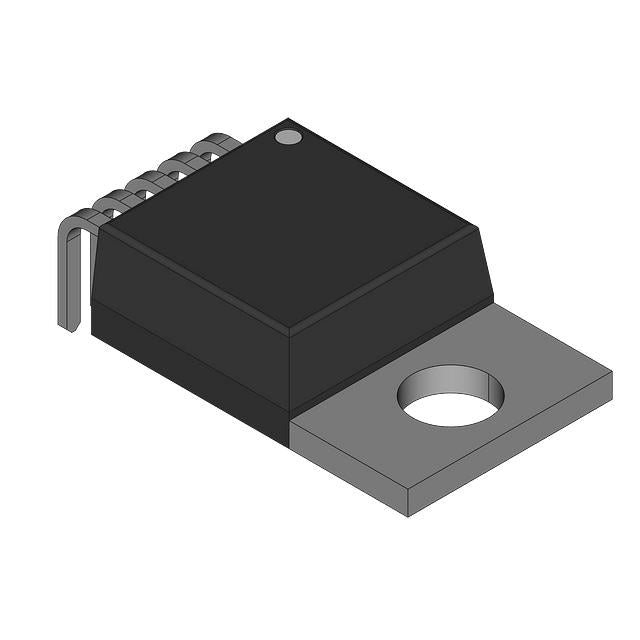

Microchip Technology MIC2920A-12WT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $8.04 | $8.04 |
| 15+ | $1.85 | $27.75 |
| 25+ | $1.81 | $45.25 |
| 50+ | $1.71 | $85.50 |
| 100+ | $1.51 | $151.00 |
| N+ | $0.30 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Bulk | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 26V |
| Voltage - Output (Min/Fixed) | 12V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.75V @ 400mA |
| Current - Output | 400mA |
| Current - Quiescent (Iq) | 300 µA |
| Current - Supply (Max) | 12 mA |
| PSRR | - |
| Control Features | - |
| Protection Features | Load Dump, Over Current, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220-3 |
| ROHS |  |
The MIC2920A-12WT from Microchip Technology is a low-dropout linear regulator providing a fixed 12V output. It is capable of delivering 400mA with a dropout voltage of 0.75V. The TO-220-3 package ensures good thermal performance. With a quiescent current of 300 µA, it is suitable for both industrial and battery-powered applications.
- Reliable 12V Regulation: Provides a stable 12V output for a wide range of industrial and automotive applications.
- Low Dropout: 0.75V dropout at 400mA allows operation with lower input voltages, reducing power dissipation.
- Low Quiescent Current: 300 µA quiescent current improves efficiency in battery-operated systems.
- Robust Package: TO-220-3 package offers excellent heat dissipation for reliable operation.
Automotive Electronics
The 12V output and 400mA capability make it suitable for powering sensors, actuators, and control modules in automotive systems.
Industrial Control Systems
Provides a stable 12V rail for PLCs, motor controllers, and industrial sensors, ensuring reliable operation in noisy environments.
Telecommunications Equipment
Ideal for powering line drivers, interface circuits, and other 12V logic in telecom infrastructure.
Battery-Powered Backup Systems
The low 300 µA quiescent current helps preserve battery life in backup power supplies and emergency systems.
Audio Equipment
Delivers a clean 12V supply for analog audio circuits, reducing hum and noise in mixers and amplifiers.
- Q: What is the output voltage of the MIC2920A-12WT?
- A: The fixed output voltage is 12V.
- Q: What is the maximum output current?
- A: It can provide up to 400mA of output current.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; consult the datasheet.
- Q: What is the dropout voltage?
- A: The dropout voltage is typically 0.75V at a 400mA load.
- Q: What is the quiescent current?
- A: The quiescent current is 300 µA.
- Q: What package is available?
- A: It is available in a TO-220-3 package.
