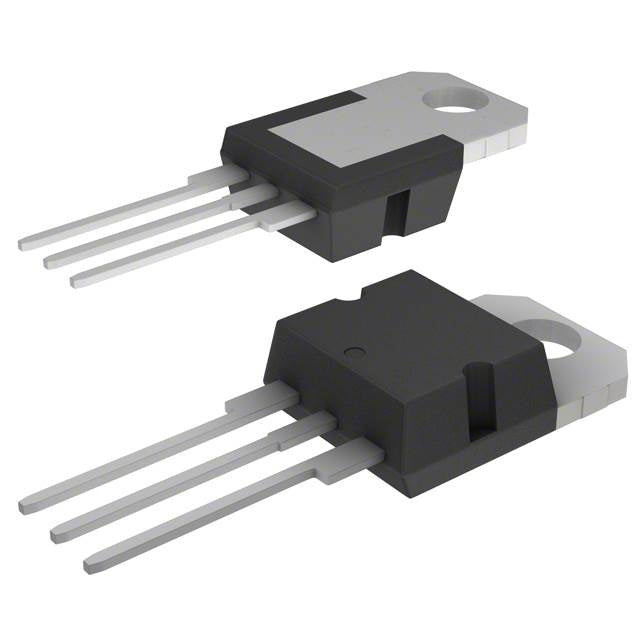

Microchip Technology MIC2920A-3.3WT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.52 | $3.52 |
| 15+ | $3.40 | $51.00 |
| 25+ | $3.33 | $83.25 |
| 50+ | $3.15 | $157.50 |
| 100+ | $2.78 | $278.00 |
| N+ | $0.56 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Tube | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 26V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.75V @ 400mA |
| Current - Output | 400mA |
| Current - Quiescent (Iq) | 300 µA |
| Current - Supply (Max) | 12 mA |
| PSRR | - |
| Control Features | - |
| Protection Features | Load Dump, Over Current, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220-3 |
The MIC2920A-3.3WT from Microchip Technology is a fixed 3.3V low-dropout regulator capable of 400mA output. With a dropout voltage of 0.75V at full load and a low quiescent current of 300µA, it balances efficiency and simplicity. The TO-220-3 package ensures excellent thermal dissipation for industrial and automotive applications.
- Thermal Robustness: TO-220 package dissipates heat effectively for high-current operation.
- Low Power Loss: 0.75V dropout at 400mA reduces wasted energy compared to standard regulators.
- Simple Integration: Fixed 3.3V output requires no external resistors, simplifying BOM.
- Wide Availability: Industry-standard pinout compatible with many existing designs.
General-Purpose Power Supplies
The 400mA output and TO-220 package with thermal tab make it suitable for benchtop supplies and hobbyist projects requiring simple 3.3V regulation.
Automotive Aftermarket Electronics
Robust TO-220 package handles higher ambient temperatures in dashcams and telematics units, with 0.75V dropout accommodating 5V rails.
Industrial Control Panels
Provides stable 3.3V for PLC I/O modules and sensors, with low quiescent current reducing heat in enclosed cabinets.
Audio Preamplifiers
Low noise operation and 300µA quiescent current support clean power for analog audio stages in mixers and effects pedals.
Battery Charger Circuits
Can regulate 3.3V for charger logic from a 5V USB input, with dropout margin for cable losses.
Test and Measurement Equipment
Reliable 3.3V reference for multimeters and oscilloscope probes, with thermal shutdown protection.
- Q: What is the output voltage?
- A: Fixed 3.3V output.
- Q: What is the maximum output current?
- A: Up to 400mA.
- Q: What is the input voltage range?
- A: Not specified in provided data; consult the datasheet.
- Q: What is the dropout voltage?
- A: 0.75V at 400mA load.
- Q: What is the quiescent current?
- A: 300µA.
- Q: What package is available?
- A: TO-220-3.
