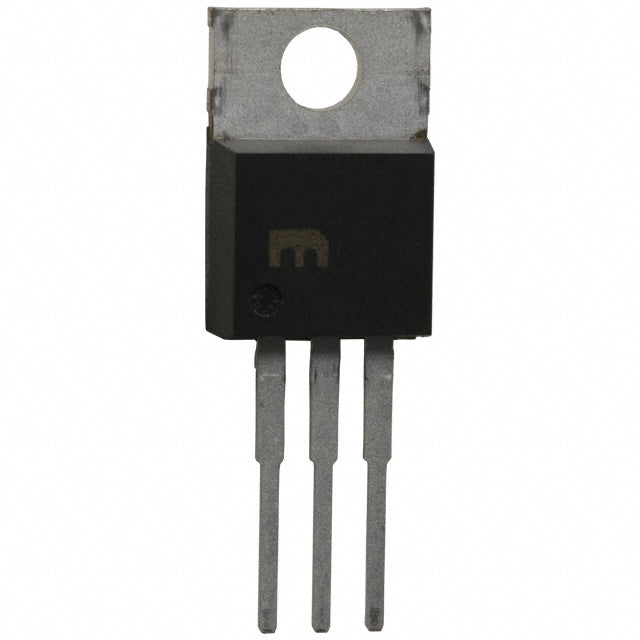

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Regular price $19.08
Regular price $4.77 Sale price $19.08
Sale Sold out
Quantity Unit Price Total Price
1 $19.08 $19.08
15+ $4.39 $65.85
25+ $4.29 $107.25
50+ $4.05 $202.50
100+ $3.58 $358.00
N+ $0.72 Price Inquiry
Shipping calculated at checkout.
Quantity
Component Recycling

Request Quote / Inquiry

Product attributes Property Value
Manufacturer Microchip Technology
Product Series
Packaging Tube |
Output Configuration Active
Output Type Positive
Number of Regulators Fixed
Voltage - Input (Max) 26V
Voltage - Output (Min/Fixed) 12V
Voltage - Output (Max) -
Voltage Dropout (Max) 0.75V @ 750mA
Current - Output 750mA
Current - Quiescent (Iq) 300 μA
Current - Supply (Max) 16 mA
PSRR -
Control Features Enable
Protection Features Over Current, Over Temperature
Operating Temperature -40°C ~ 125°C
Grade -
Qualification -
Mounting Type Through Hole
Package / Case TO-220-5
Supplier Device Package TO-220-5
ROHS RoHS Compliant - Hazardous Substance Free Electronic Components | HQICKEY

The Microchip Technology MIC29371-12WT is a robust fixed-output low dropout linear regulator providing a stable 12V supply. Capable of sourcing up to 750mA, it features a low dropout voltage of 0.75V at full load, ensuring efficient operation. With a quiescent current of 300 μA, it balances performance and power consumption. The TO-220-5 package provides excellent thermal dissipation, making it suitable for industrial and automotive applications where reliability is paramount.

  • Fixed 12V Output: Simplifies design by providing a precise 12V rail without external resistors.
  • High Current Capability: 750mA output current supports a wide range of loads.
  • Low Dropout Voltage: 0.75V dropout at full load improves efficiency and reduces power dissipation.
  • Excellent Thermal Performance: TO-220-5 package ensures effective heat sinking for reliable operation in harsh environments.

12V Industrial Control Systems

The fixed 12V output and 750mA capability make it ideal for powering industrial microcontrollers, relays, and control logic.

Telecommunication Equipment

Use the MIC29371-12WT to provide a stable 12V rail for line drivers, interface circuits, and small base stations.

Audio Equipment Power Supply

The low dropout and clean output make it suitable for powering 12V audio preamplifiers and mixers, reducing hum and noise.

Automotive Accessory Power

This regulator can power 12V automotive accessories like sensors, display modules, and convenience electronics.

Test and Measurement Instruments

Provide a reliable 12V supply for benchtop multimeters, signal generators, and other test equipment requiring a stable reference.

Networking Routers and Switches

Power the 12V internal rails of networking devices, ensuring consistent performance for data processing and communication.

Q: What is the fixed output voltage of the MIC29371-12WT?
A: This LDO provides a fixed 12V output, ideal for powering 12V logic and analog circuits.
Q: What is the maximum output current?
A: The MIC29371-12WT can deliver up to 750mA of output current, suitable for moderate power loads.
Q: What is the input voltage range?
A: The input voltage must be higher than 12V plus the dropout voltage. Refer to the datasheet for the absolute maximum input rating.
Q: What is the dropout voltage?
A: The dropout voltage is typically 0.75V at a 750mA load, allowing operation with a modest input-to-output differential.
Q: What is the quiescent current?
A: The quiescent current is 300 μA, which is reasonable for a 12V regulator and helps maintain efficiency.
Q: What package is available?
A: This device is available in a TO-220-5 package, which offers excellent thermal performance for power dissipation.
Base Product Number : MIC29371-12
12V 750mA Fixed Output LDO Linear Regulator Low Dropout MIC29371 Microchip TO-220-5
