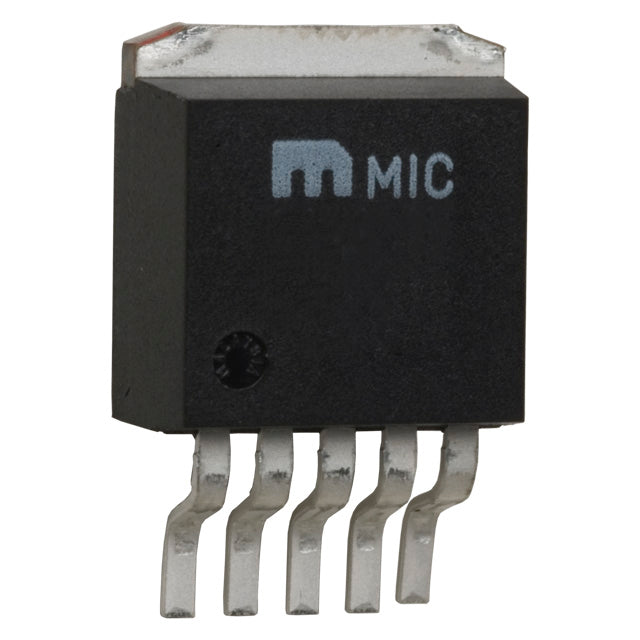

Microchip Technology MIC29371-12WU
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $19.08 | $19.08 |
| 15+ | $4.39 | $65.85 |
| 25+ | $4.29 | $107.25 |
| 50+ | $4.05 | $202.50 |
| 100+ | $3.58 | $358.00 |
| N+ | $0.72 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Tube | |
| Output Configuration | Active |
| Output Type | Positive |
| Number of Regulators | Fixed |
| Voltage - Input (Max) | 26V |
| Voltage - Output (Min/Fixed) | 12V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.75V @ 750mA |
| Current - Output | 750mA |
| Current - Quiescent (Iq) | 300 μA |
| Current - Supply (Max) | 16 mA |
| PSRR | - |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA |
| Supplier Device Package | TO-263-5 |
| ROHS |
The Microchip Technology MIC29371-12WU is a fixed 12V low dropout regulator capable of sourcing 750mA. It features a dropout voltage of 0.75V at full load and a quiescent current of 300 μA. The TO-263-5 package provides excellent thermal performance for higher power applications.
- High Current Capacity: 750mA output supports demanding loads.
- Thermal Efficiency: TO-263 package dissipates heat effectively.
- Low Quiescent Current: 300 μA helps maintain efficiency in standby modes.
- Fixed 12V Output: Simplifies design for standard 12V systems.
12V Industrial Sensors
Provides a stable 12V rail for industrial proximity sensors and transmitters requiring up to 750mA.
Actuator and Relay Drivers
The high current capability supports driving relays and small actuators in automation systems.
Telecom Power Supplies
Regulates intermediate 12V buses for line cards and communication modules.
Battery Charging Circuits
Can be used as a post-regulator for 12V battery charging systems.
Audio Amplifier Pre-Regulation
Provides a clean 12V supply for audio preamp stages, reducing hum and noise.
LED Lighting Drivers
Powers constant-voltage LED strips and lighting controllers.
- Q: What is the output voltage?
- A: The MIC29371-12WU provides a fixed 12V output.
- Q: What is the maximum output current?
- A: It can deliver up to 750mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; please refer to the datasheet.
- Q: What is the dropout voltage?
- A: Dropout voltage is 0.75V at 750mA load.
- Q: What is the quiescent current?
- A: The quiescent current is 300 μA.
- Q: What package is available?
- A: It comes in a TO-263-5 package.
- Q: What is the output voltage?
- A: The MIC29371-12WU provides a fixed 12V output.
- Q: What is the maximum output current?
- A: It can deliver up to 750mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; please refer to the datasheet.
- Q: What is the dropout voltage?
- A: Dropout voltage is 0.75V at 750mA load.
- Q: What is the quiescent current?
- A: The quiescent current is 300 μA.
- Q: What package is available?
- A: It comes in a TO-263-5 package.
