Microchip Technology MIC38C42-1BN
Regular price
Dhs. 355,904.94
Regular price
Dhs. 374,636.78
Sale price
Dhs. 355,904.94
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,904.94 | Dhs. 355,904.94 |
| 15+ | Dhs. 344,665.84 | Dhs. 5,169,987.60 |
| 25+ | Dhs. 337,173.10 | Dhs. 8,429,327.50 |
| 50+ | Dhs. 318,441.26 | Dhs. 15,922,063.00 |
| 100+ | Dhs. 280,977.59 | Dhs. 28,097,759.00 |
| N+ | Dhs. 56,195.52 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
MIC38C42-1BN BiCMOS Current-Mode PWM Controller
The MIC38C42-1BN from Microchip Technology is a high-performance BiCMOS current-mode pulse-width modulation (PWM) controller designed for isolated power supply applications. This versatile controller supports multiple topologies including Boost, Buck, Flyback, and Forward configurations, making it ideal for a wide range of power conversion designs.
Key Features
- High Switching Frequency: 500kHz operation enables compact transformer and filter designs
- Wide Supply Voltage Range: 9V to 20V with 14.5V start-up voltage
- High Duty Cycle: Up to 96% for maximum efficiency
- Isolated Output: Built-in isolation for safety-critical applications
- Extended Temperature Range: -40°C to 150°C (TJ) for industrial and automotive applications
- Frequency Control: Precision control features for optimized performance
Applications
Perfect for aerospace, automotive, industrial, telecommunications, and medical power supply designs requiring high reliability and long lifecycle support.
Quality & Compliance
As an authorized distributor, we provide full traceability, long lifecycle support, and authentic Microchip Technology components for mission-critical applications.
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | - |
| Topology | Boost, Buck, Flyback, Forward |
| Voltage - Start Up | 14.5 V |
| Voltage - Supply (Vcc/Vdd) | 9V ~ 20V |
| Duty Cycle | 96% |
| Frequency - Switching | 500kHz |
| Power (Watts) | - |
| Fault Protection | - |
| Control Features | Frequency Control |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |

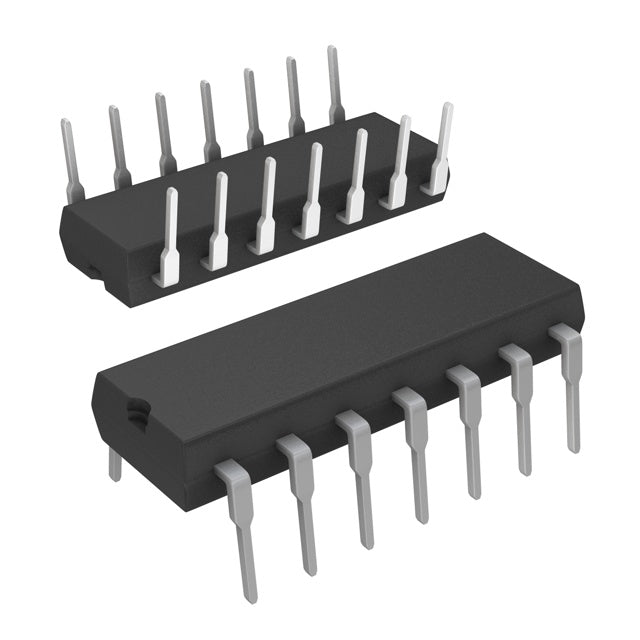

| Package / Case | 14-DIP (0.300", 7.62mm) |
| Supplier Device Package | 14-DIP |
MIC38C42-1BN.pdf
×
