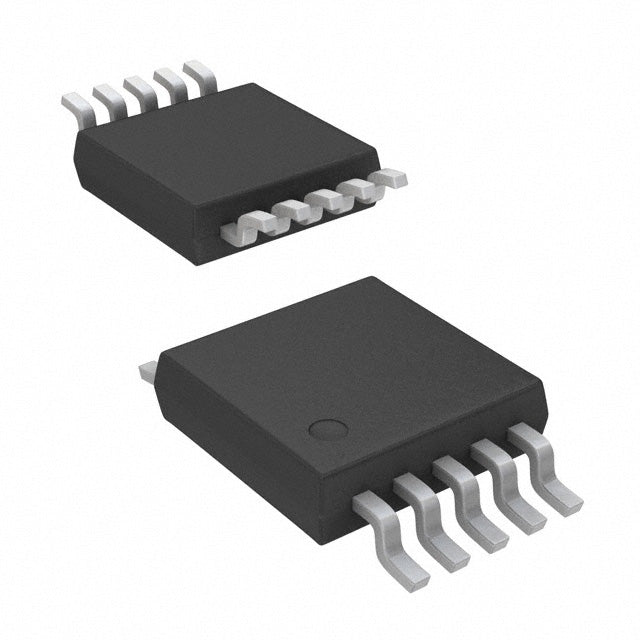

Microchip Technology MIC4723YMME-TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $9.88 | $9.88 |
| 15+ | $2.27 | $34.05 |
| 25+ | $2.22 | $55.50 |
| 50+ | $2.10 | $105.00 |
| 100+ | $1.85 | $185.00 |
| N+ | $0.37 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 3V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1V |
| Voltage - Output (Max) | 5.5V |
| Current - Output | 3A |
| Frequency - Switching | 2MHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad |
| Supplier Device Package | 10-MSOP-EP |
| ROHS |  |
The MIC4723YMME-TR from Microchip Technology is a high-frequency synchronous Buck converter optimized for low-voltage applications. It operates from a 3V to 5.5V input and provides an adjustable output from 1V to 5.5V, with a maximum load of 3A. The 2MHz switching frequency allows for a compact solution with small external components. The 10-MSOP package with exposed pad ensures efficient thermal performance in space-limited designs.
- Compact Solution: 2MHz switching minimizes inductor and capacitor sizes.
- Low Input Voltage: Supports 3V rails, ideal for battery-powered devices.
- High Efficiency: Synchronous operation extends battery life.
- Thermal Management: Exposed pad aids heat sinking in tight layouts.
Portable Electronics
The MIC4723YMME-TR's 2MHz switching frequency enables the use of tiny, low-profile inductors and capacitors, ideal for slim smartphones and tablets.
FPGA Core Supplies
With a 3A output and adjustable voltage down to 1V, it can power the core of small FPGAs from a 5V USB supply, maintaining tight regulation.
SSD and Storage
In solid-state drives, this converter efficiently steps down 5V to 3.3V or 1.8V for NAND flash controllers, reducing heat in compact enclosures.
Point-of-Load from 3.3V
When powered from a 3.3V rail, it can generate lower voltages for I/O or logic, providing a flexible POL solution.
Battery-Powered IoT
For Li-ion powered IoT devices, the 3V minimum input allows operation down to the battery's end-of-life voltage, maximizing runtime.
- Q: What type of converter is the MIC4723YMME-TR?
- A: It is a Buck (step-down) DC-DC converter.
- Q: What is the input voltage range?
- A: The input voltage range is 3V to 5.5V.
- Q: What is the output voltage range?
- A: The output is adjustable from 1V to 5.5V.
- Q: What is the maximum output current?
- A: It can deliver up to 3A of output current.
- Q: What is the switching frequency?
- A: The switching frequency is 2MHz.
- Q: What package is available?
- A: It comes in a 10-MSOP with exposed pad.
