Microchip Technology MIC49500WR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $9.64 | $9.64 |
| 15+ | $9.34 | $140.10 |
| 25+ | $9.14 | $228.50 |
| 50+ | $8.63 | $431.50 |
| 100+ | $7.61 | $761.00 |
| N+ | $1.52 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Tube | |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 0.7V |
| Voltage - Output (Max) | 6V |
| Voltage Dropout (Max) | 0.5V @ 5A |
| Current - Output | 5A |
| Current - Quiescent (Iq) | 90 mA |
| Current - Supply (Max) | 130 mA |
| PSRR | - |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

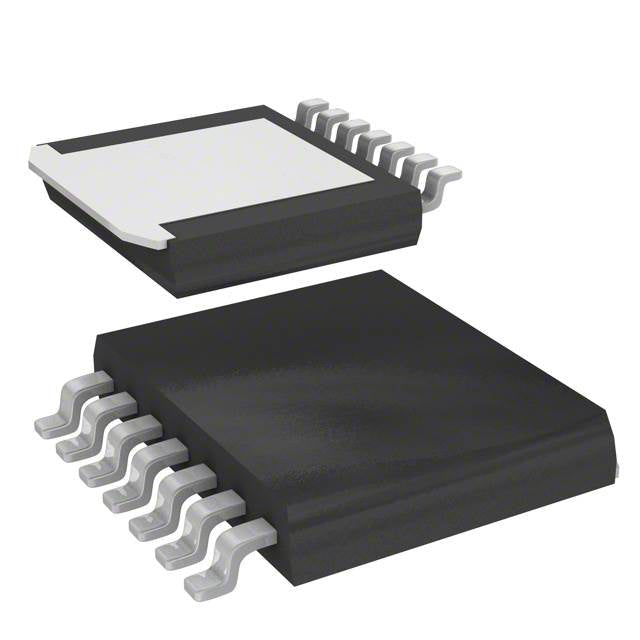

| Package / Case | SPAK-7 (7 Leads + Tab) |
| Supplier Device Package | 7-SPAK |
| ROHS |  |
The MIC49500WR from Microchip Technology is a high-current low dropout linear regulator providing a fixed 6V output at up to 5A. With a low dropout of 0.5V and robust 7-SPAK package, it is designed for demanding applications requiring high power density and reliability.
- Very High Current: 5A output for heavy loads.
- Low Dropout: 0.5V at 5A ensures efficiency.
- Robust Package: 7-SPAK for excellent thermal dissipation.
- Stable 6V Output: Fixed output simplifies design.
High-Current 6V Rail for Processors
Provides a stable 6V supply for high-performance processors and ASICs requiring up to 5A.
Server and Storage Systems
Powers 6V rails in servers, ensuring low dropout and high efficiency for continuous operation.
FPGA Core Supply
Regulates 6V for FPGA cores, handling dynamic load changes with 0.5V dropout.
Telecom Base Stations
Supplies 6V for RF power amplifiers and base station electronics, requiring high current and reliability.
Industrial Motor Drivers
Provides a stable 6V rail for motor control logic and drivers, supporting high inrush currents.
Medical Equipment
Delivers clean 6V power for diagnostic devices, ensuring low noise and stable operation.
- Q: What is the output voltage of the MIC49500WR?
- A: The output voltage is 6V (fixed).
- Q: What is the maximum output current?
- A: It can deliver up to 5A of output current.
- Q: What is the input voltage range?
- A: The input voltage is 0.7V (typical for this configuration).
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.5V at 5A load.
- Q: What is the quiescent current?
- A: The quiescent current is 90 mA.
- Q: What package is available?
- A: It comes in a 7-SPAK package.
