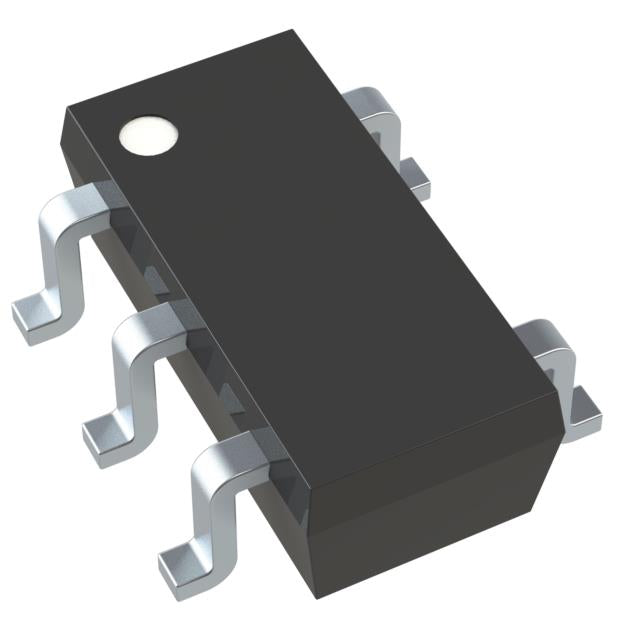

Microchip Technology MIC5205-2.85BM5-TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.28 | $1.28 |
| 15+ | $0.29 | $4.35 |
| 25+ | $0.29 | $7.25 |
| 50+ | $0.27 | $13.50 |
| 100+ | $0.24 | $24.00 |
| N+ | $0.05 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Bulk | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 16V |
| Voltage - Output (Min/Fixed) | 2.85V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.35V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 150 µA |
| Current - Supply (Max) | 2.5 mA |
| PSRR | 75dB (100Hz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
The MIC5205-2.85BM5 TR from Microchip Technology is a high-performance low dropout regulator with a fixed 2.85V output. It delivers up to 150mA with a low 0.35V dropout, making it efficient for battery-powered systems. The 150µA quiescent current and 75dB PSRR at 100Hz ensure minimal power consumption and clean output. Housed in a SOT-23-5 package, it is ideal for space-constrained, noise-sensitive applications.
- High PSRR: 75dB at 100Hz provides excellent ripple rejection, critical for RF and analog circuits.
- Low Dropout: 0.35V at 150mA maximizes efficiency and extends battery life.
- Low Quiescent Current: 150µA reduces standby power, ideal for always-on devices.
- Compact Package: SOT-23-5 enables miniaturized designs without sacrificing performance.
Portable GPS Receivers
The 2.85V output is ideal for GPS modules, providing a stable supply for RF front-ends and baseband processors, with 75dB PSRR at 100Hz rejecting interference.
Digital Cameras and Imaging
Image sensors and DSPs in cameras require clean 2.85V rails. This LDO ensures low noise for high-quality image capture and processing.
Handheld Test Instruments
Multimeters and oscilloscopes benefit from the low quiescent current and stable output, ensuring accurate measurements over extended battery life.
Wireless Headsets
Bluetooth audio devices need a clean 2.85V supply for codecs and amplifiers. The compact SOT-23-5 package fits tiny earbud PCBs.
Smart Home Sensors
Battery-powered door/window sensors and thermostats use this regulator for reliable 2.85V operation, maximizing battery replacement intervals.
- Q: What is the output voltage of the MIC5205-2.85BM5 TR?
- A: The fixed output voltage is 2.85V.
- Q: What is the maximum output current?
- A: It can deliver up to 150mA.
- Q: What is the input voltage range?
- A: The input voltage is 2.85V (typical operating point; refer to datasheet for full range).
- Q: What is the dropout voltage?
- A: Dropout is 0.35V at 150mA load.
- Q: What is the quiescent current?
- A: Quiescent current is 150µA.
- Q: What package is available?
- A: It comes in a SOT-23-5 package.
MIC5205-2.85BM5 TR.pdf
- Q: What is the output voltage of the MIC5205-2.85BM5 TR?
- A: The fixed output voltage is 2.85V.
- Q: What is the maximum output current?
- A: It can deliver up to 150mA.
- Q: What is the input voltage range?
- A: The input voltage is 2.85V (typical operating point; refer to datasheet for full range).
- Q: What is the dropout voltage?
- A: Dropout is 0.35V at 150mA load.
- Q: What is the quiescent current?
- A: Quiescent current is 150µA.
- Q: What package is available?
- A: It comes in a SOT-23-5 package.
