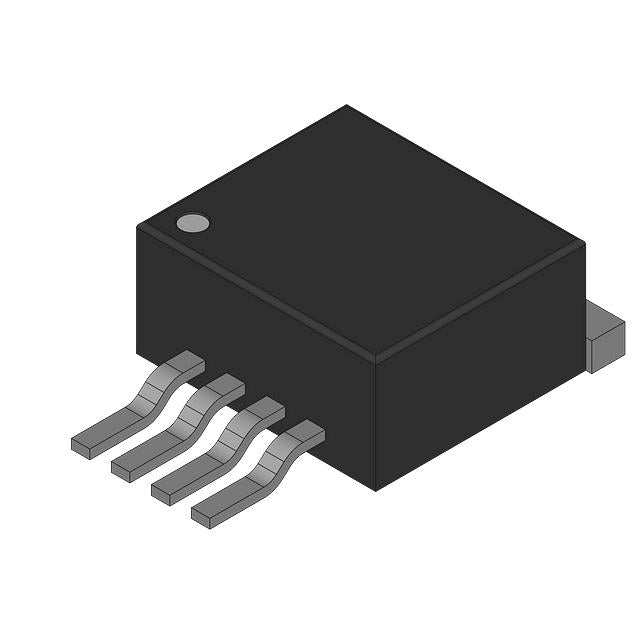

Microchip Technology MIC5209-1.8YU
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $6.80 | $6.80 |
| 15+ | $1.56 | $23.40 |
| 25+ | $1.53 | $38.25 |
| 50+ | $1.45 | $72.50 |
| 100+ | $1.28 | $128.00 |
| N+ | $0.26 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Bulk | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 16V |
| Voltage - Output (Min/Fixed) | 1.8V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.6V @ 500mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 170 µA |
| Current - Supply (Max) | 25 mA |
| PSRR | 75dB (120Hz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | 0°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA |
| Supplier Device Package | TO-263-5 |
| ROHS |  |
The MIC5209-1.8YU from Microchip Technology is a fixed-output LDO regulator delivering 1.8V at up to 500mA. Its low 170µA quiescent current and 600mV dropout voltage make it ideal for battery-powered and energy-efficient designs. With 75dB PSRR at 120Hz, it ensures clean, stable power for noise-sensitive digital and analog circuits. The TO-263-5 package provides excellent thermal performance for reliable operation.
- High PSRR: 75dB rejection at 120Hz ensures clean power for sensitive digital and RF loads.
- Low Quiescent Current: 170µA quiescent current maximizes battery life in portable devices.
- 500mA Output: Supports a wide range of low-voltage digital applications.
- Thermally Efficient Package: TO-263-5 package dissipates heat effectively for reliable operation.
Digital Core Power for FPGAs
The 1.8V output at 500mA is ideal for powering the core logic of low-power FPGAs and CPLDs, ensuring stable operation during complex computations.
Battery-Powered Wearables
With 170µA quiescent current, it extends battery life in smartwatches and fitness trackers while providing a stable 1.8V rail for the main processor.
DDR Memory Termination
Provides a clean 1.8V supply for DDR2/DDR3 memory termination circuits, reducing signal integrity issues in high-speed data systems.
Portable Audio Players
Delivers low-noise power to audio codecs and DACs, preserving audio fidelity with its high 75dB PSRR.
Industrial Sensor Nodes
Powers low-voltage digital sensors and microcontrollers in industrial IoT applications, offering reliable performance in harsh environments.
Telecom Base Stations
Provides stable 1.8V power to clock distribution ICs and PLLs, maintaining timing accuracy in communication infrastructure.
