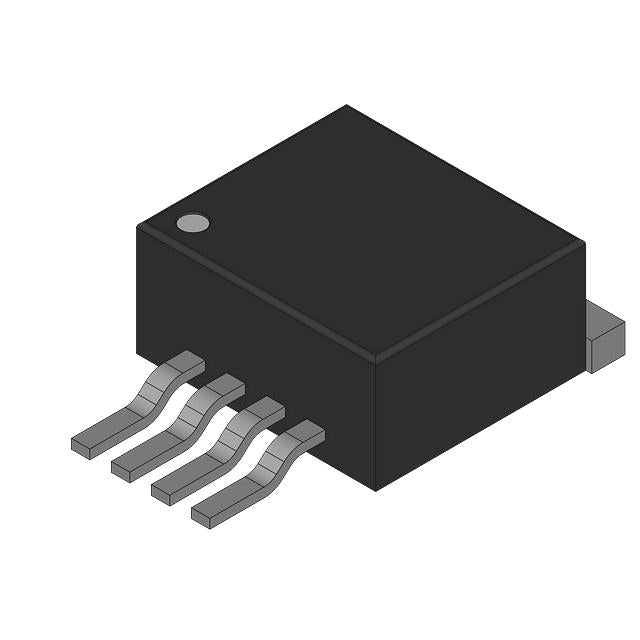

Microchip Technology MIC5209-2.5YU
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $6.80 | $6.80 |
| 15+ | $1.56 | $23.40 |
| 25+ | $1.53 | $38.25 |
| 50+ | $1.45 | $72.50 |
| 100+ | $1.28 | $128.00 |
| N+ | $0.26 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Bulk | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 16V |
| Voltage - Output (Min/Fixed) | 2.5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.6V @ 500mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 170 µA |
| Current - Supply (Max) | 25 mA |
| PSRR | 75dB (120Hz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA |
| Supplier Device Package | TO-263-5 |
| ROHS |  |
The MIC5209-2.5YU from Microchip Technology is a fixed-output LDO regulator providing 2.5V at up to 500mA. Its low 170µA quiescent current and 600mV dropout voltage make it well-suited for battery-powered and energy-conscious designs. With an excellent 75dB PSRR at 120Hz, it ensures clean, stable power for noise-sensitive analog and RF circuits. The TO-263-5 package offers superior heat dissipation for demanding applications.
